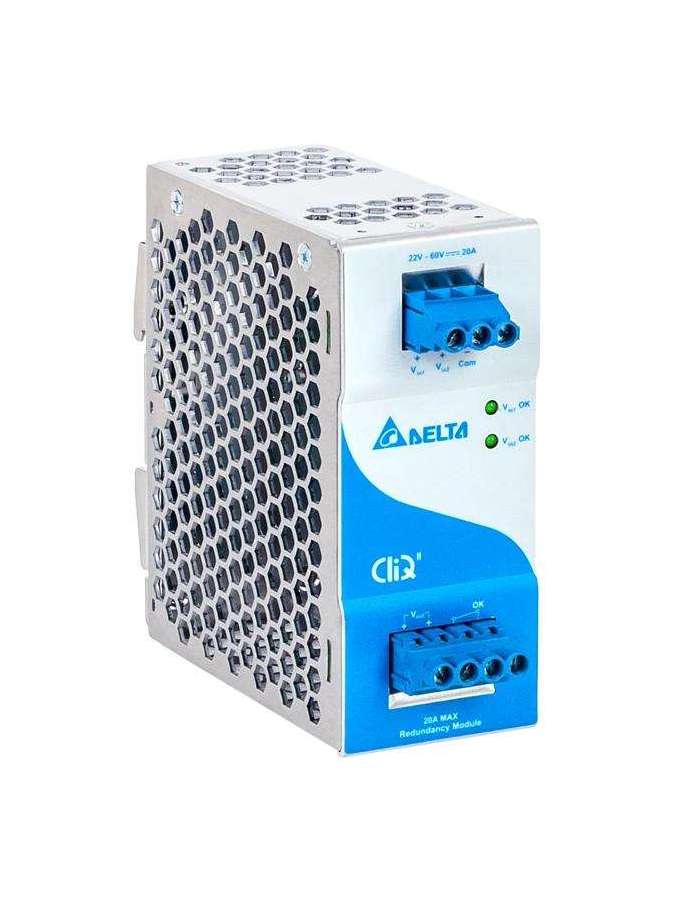

DRR-20A DELTA

Fiche technique

Output Current

20A

Output Voltage

24V

Nominal Input Voltage

24-48Vdc

Input Voltage Range

22-60Vdc

Case Chassis / Cover

Aluminium

Operating Temperature

-40°C to +80°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction

Operating Altitude

0 to 2,500 Meters (8,200 ft.)

Degree of Protection

IP20

Protection Against Shock

Class III with Primary Earth connection

Galvanic Isolation

Input & Output / PE: 1.5 KVac

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Cooling System

Convection

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2, KN 35 (DRR-20N and DRR-40N only)

Indicator

Green LED (DC OK): Vin1 and Vin2

Input Terminal

3 Pins (Rated 300V/30A)

Output Terminal

4 Pins (Rated 300V/30A)

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Wire

Input / Output: AWG 12-10

Pollution Degree

2

Industrial Control Equipment

UL/cUL recognized: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)

Electrical Equipments of Machines

EN/BS EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations

IEC/EN/BS EN 62477-1 / IEC 62103

Voltage Drop Between Input and Output

Typical 0.65V
