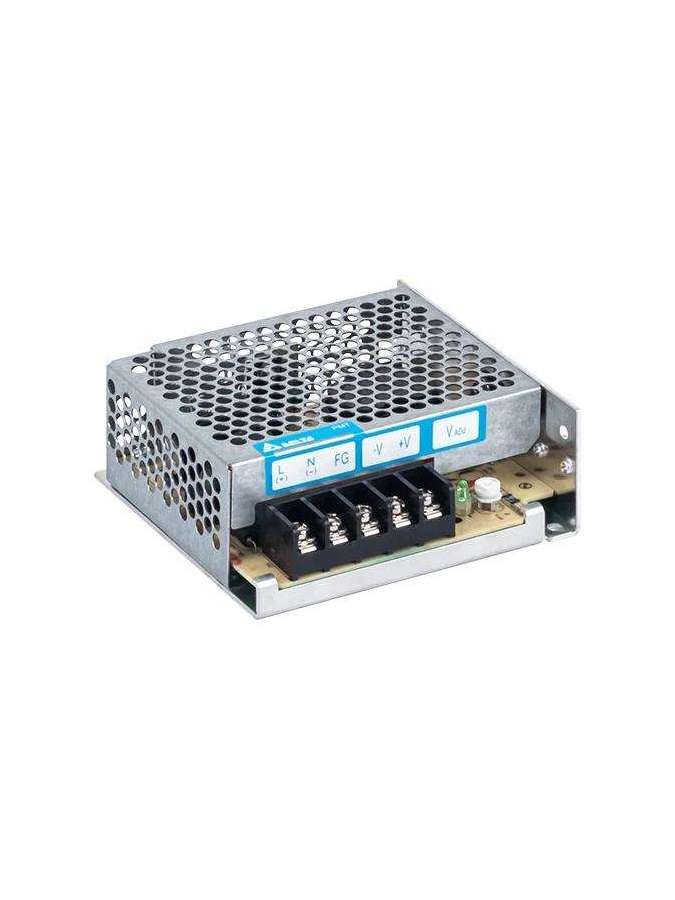

PMT-15V50W1AA DELTA

Fiche technique

Output Current

3.4A

Output Voltage

15V

Output Power

51W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Efficiency at 100% load

85.5% typ. @ 230Vac

Inrush Current

45A typ. @ 230Vac

Case Chassis / Cover

Aluminium / SGCC

Cooling System

Convection

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Hold-up Time

20ms typ. @ 115Vac, 100ms typ. @ 230Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% (1000mVp-p)@ 0-100% load (Slew Rate: 0.1A/µS)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Over Temperature

Non-Latching (Auto-Recovery)

Protection Against Shock

Class I with Primary Earth connection

Output Voltage Adjustment Range

13.5-16.5Vdc

Start-up with Capacitive Loads

8,000µF Max

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Safety Entry Low Voltage

SELV

Immunity

EN/BS EN 55024

Pollution Degree

2

Over Voltage Category

II
