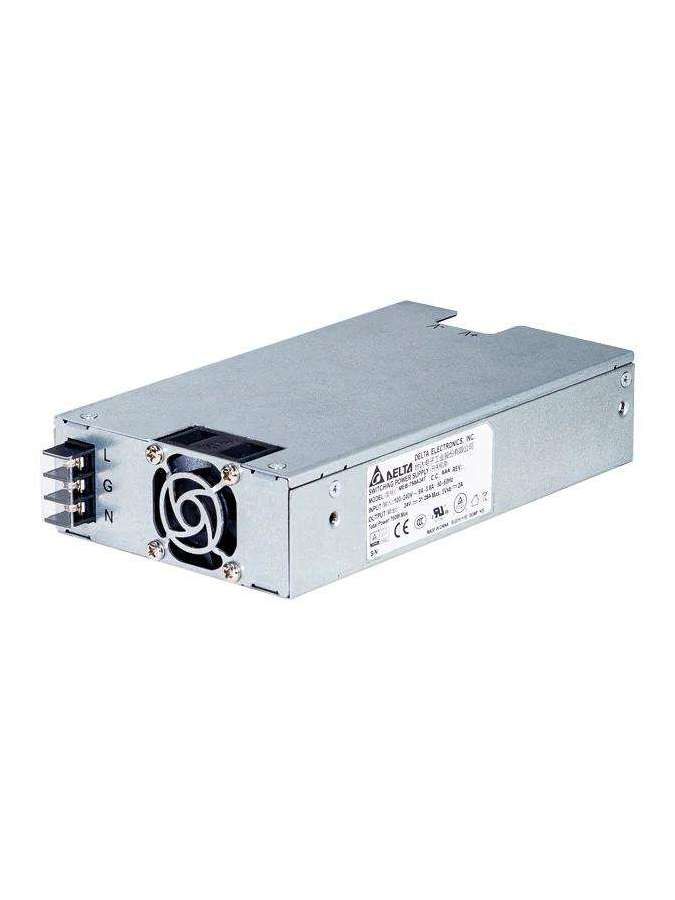

MEB-750A24T DELTA

Fiche technique

Output Current

0-31.25A

Output Voltage

24V

Output Power

750W

Line Regulation

1%

Load Regulation

2%

Start-up Time

2000ms with AC turn on

Hold-up Time

12 ms @ 100% load, with nominal input range

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ with 50% load change

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

9 A

Efficiency at 100% load

Up to 94%

Case Chassis / Cover

Enclosed

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50 G, 11 ms, 3 shocks for each direction

Vibration (Non-Operating)

5-500 Hz, 2 Grms, 15 minute for each three axis

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

Overvoltage

Main output 145% of rated normal voltage, Latch Mode Standby 125% of rated voltage, Latch Mode

Over Temperature

Latch Mode for Main output

Short Circuit

Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

MTBF

500 Khrs based on Telecordia SR-332

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)

Emission

EN/BS EN 55011, EN/BS EN 55032: Class B

Harmonic Current Emissions

IEC61000-3-2 Meet Class D limit

Expected Cap Life Time

Operating life (Minimum) at 115 Vac, 750 W, 25°C: 26,280 hrs

Voltage Fluctuation and Flicker

IEC61000-3-3

Ripple and Noise

1% pk-pk Vrated@ rated load

Inrush Current

40 A @ 264 Vac, cold start

ESD Immunity

IEC61000-4-2

Radiated Immunity

IEC61000-4-3

EFT

IEC61000-4-4

Surge

IEC61000-4-5

Conducted Immunity

IEC61000-4-6

Magnetic Field

IEC61000-4-8

Start-up with Capacitive Loads

6000uF
