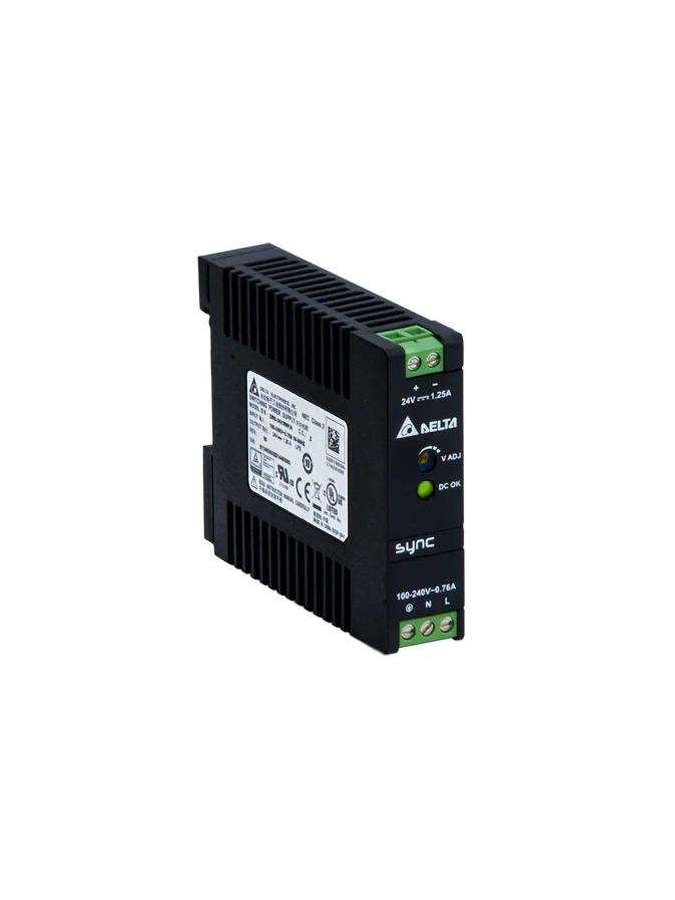

DRS-24V30W1AZ DELTA

Fiche technique

Output Current

1.25A

Output Voltage

24V

Output Power

30W

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-50% load, 50-100% (Slew Rate: 0.1A/µs, 50% duty cycle @ 5Hz to 100Hz)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Efficiency at 100% load

88.0% typ.@ 230Vac

Case Chassis / Cover

Plastic

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

Over Temperature

Auto-Recovery

Short Circuit

Auto-Recovery when the fault is removed

Degree of Protection

IP20

Protection Against Shock

Class I with PE connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016

Cooling System

Convection

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Immunity

Generic Standards: EN 55024

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3

Indicator

Green LED: DC OK

Output Voltage Adjustment Range

21.6-26.4Vdc

Start-up with Capacitive Loads

3,000µF Max

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for X direction

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 1 shock for X direction

Industrial Control Equipment

UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

Safety Entry Low Voltage

SELV (EN 60950)

Over Voltage Category

II
