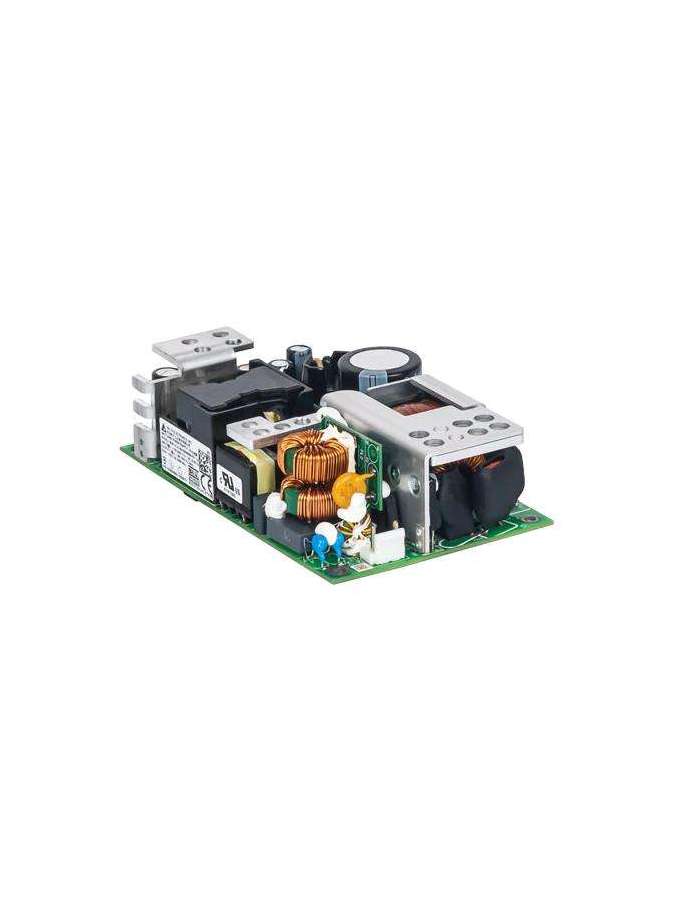

PJH-36V300WBCA DELTA

Fiche technique

Output Current

8.3A

Output Voltage

36V

Output Power

300W

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Operating Temperature

-25°C to +70°C (Cold Start -40°C)

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine 30G for a duration of 18ms, 3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); displacement of 0.35mm; 60 min per axis for all X, Y, Z direction

Overload / Overcurrent

130 ~ 180% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Emission

Generic Standards: CISPR 11, CISPR 32, EN/BS EN 55011, EN/BS EN 55032, FCC Title 47, EN 55014-1

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Convection, Fan Cool

Expected Cap Life Time

10 years (115Vac, 40% load or 120W @ 40°C)

Immunity

Generic Standards: EN 55024, EN 55035, EN 55014-2, EN 61204-3

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED (DC OK)

Output Voltage Adjustment Range

34.2-37.8Vdc

Start-up with Capacitive Loads

8,000µF Max @ nominal input (100% load)

Pollution Degree

PD2, PD3

Safety Entry Low Voltage

SELV (IEC 60950-1)

Over Voltage Category

Design to OVC III according to IEC/EN 61558
