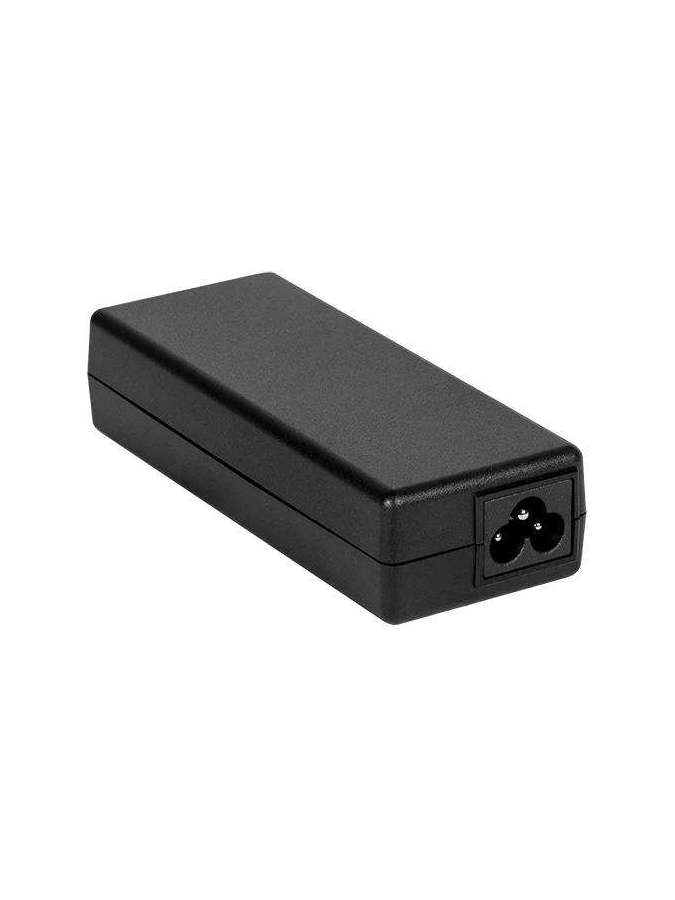

ADT-090A24AA DELTA

Ficha técnica

Output Current

3.75A

Output Voltage

24V

Output Power

90W

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Current

1.3A max. @ 115Vac, 0.6A max. @ 230Vac

Efficiency at 100% load

90% typ. @ 115Vac, 91.55% typ. @ 230Vac

Inrush Current

No damage

Power Factor at 100% load

0.9 min. @ 230Vac, Rated output current

Case Chassis / Cover

PC

Cooling System

Convection

Input Terminal

Socket C6 type

Output Terminal

Barrel (O.D: 5.5mm, I.D: 2.5mm, length: 11mm)

Operating Temperature

-10°C to +60°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5%-95% RH (non-condensing)

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20mins, one cycle for each three axis

Expected Cap Life Time

5 years (50% load @ 25°C)

CE

Comply with EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC 61000-3-2 Class D; GB17625.1-2003

EFT

Level 2 Criteria A: 2kV

Line Regulation

± 0.5%

Load Regulation

± 4.5%

Start-up Time

1000 ms @ 115Vac, 500 ms @ 230Vac

Hold-up Time

30 ms @ nominal input, full load

Shock Test (Non-Operating)

50G, 11ms, 1 shock for each direction

Overvoltage

33V, Latch

Overload / Overcurrent

120-180% , Latch

Over Temperature

Latch Mode

Short Circuit

Latch Mode

Protection Against Shock

Class I with function earth

Galvanic Isolation

I/P to O/P: 3000Vac

Leakage Current

0.1mA @ 240Vac/50Hz

Operating Altitude

5,000 meters (16,400 feet)

Immunity

EN/BS EN 55024; KN35

Rise Time

40ms @ nominal input, full load
