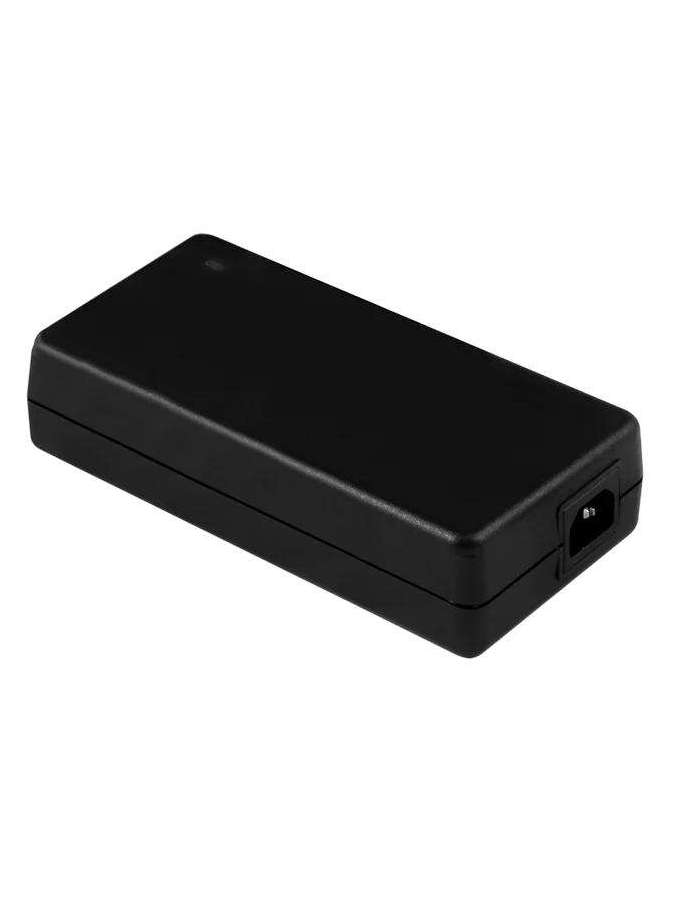

MEA-250A24C DELTA
MEA-250A24C
Ficha técnica
- Output Current
- 10.42A
- Output Voltage
- 24V
- Output Power
- 250W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 4A @ 115Vac, 2A @ 230Vac
- Case Chassis / Cover
- PC
- Cooling System
- NA
- Operating Temperature
- 5°C to +60°C
- Storage Temperature
- -40°C to +70°C
- Operating Humidity
- 10-95% RH (Non-Condensing)
- Vibration (Non-Operating)
- 5-500Hz, 2.09Grms, 20 minute for each three axis
- Degree of Protection
- IP22
- Expected Cap Life Time
- 5 Years (115 Vac , 100% load @ 25°C)
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016, and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002(UK MDR 2002)
- Emission
- EN/BS EN 55011, EN/BS EN 55032, Compliance to FCC FCC Title 47: Class B
- Harmonic Current Emissions
- IEC61000-3-2
- Voltage Fluctuation and Flicker
- IEC61000-3-3
- Line Regulation
- ± 0.5%
- Load Regulation
- ± 4.5%
- Start-up Time
- 3000ms @ 115Vac
- Hold-up Time
- 10ms @ 100Vac
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 10% @ 0-50% & 50-100% load; Slew rate 0.25A/µs (@ 100Hz, 50% Duty Cycle)
- Shock Test (Non-Operating)
- 50G, 11ms, 3 shocks for each direction
- Over Temperature
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Short Circuit
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Protection Against Shock
- Class I
- Operating Altitude
- 5,000 meters (16,400 feet)
- Immunity
- IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11
