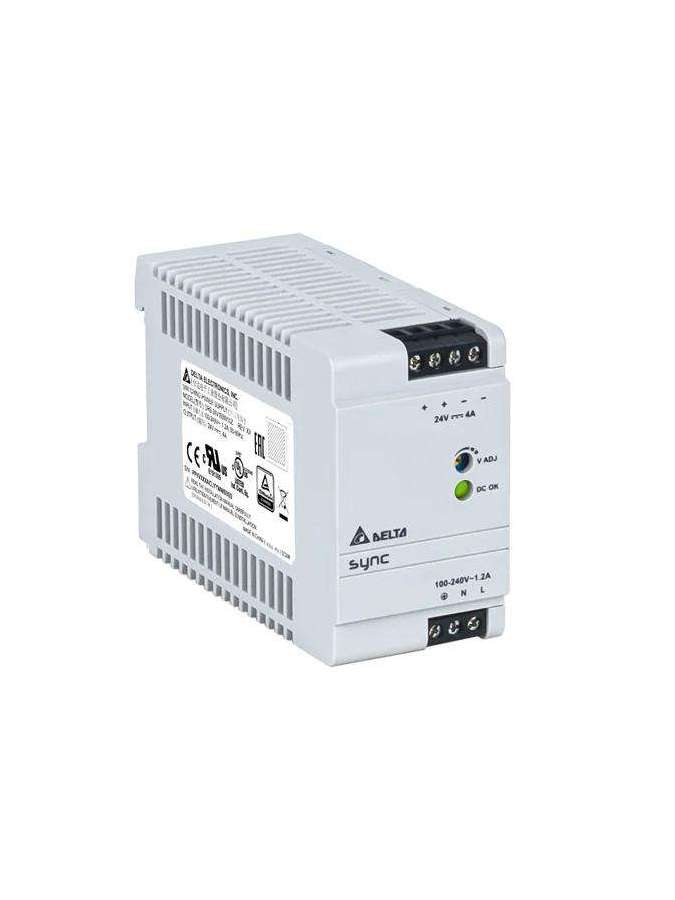

DRS-24V100W1AZ DELTA

Ficha técnica

Output Current

4A

Output Voltage

24V

Output Power

96W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Plastic

Cooling System

Convection

Operating Temperature

-20°C to +70°C (Cold start at -40°C@ 40% load)

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

Degree of Protection

IP20

Expected Cap Life Time

10 years (115ac & 230Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/µs, 50% duty cycle @ 5Hz to 1KHz)

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions

Shock Test (Non-Operating)

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total

Overload / Overcurrent

105~140% of rated load current, Fold Forward Mode (current rises, voltage drops), Auto-recovery when the fault is removed

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class I with PE connection

Output Voltage Adjustment Range

24-28Vdc

Start-up with Capacitive Loads

3,000µF Max

Operating Altitude

0 to 2,000 Meters (6,560 ft.)

Safety Entry Low Voltage

SELV (IEC 60950)

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 61000-6-2

DC Input Voltage Range

120-375Vdc

Indicator

Green LED (DC OK)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis

Pollution Degree

2

Industrial Control Equipment

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315335)

Component Power Supply for General Use

EN 61204-3
