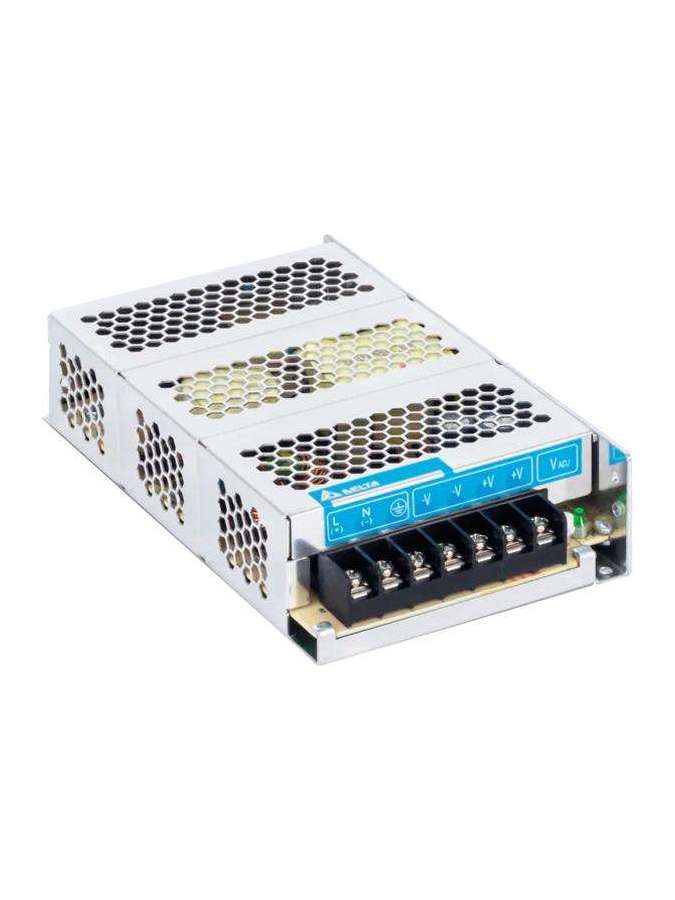

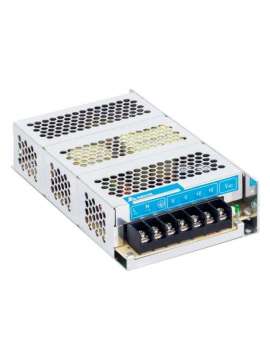

PMC-24V150W1AA DELTA

Ficha técnica

Output Current

6.25A

Output Voltage

24V

Output Power

150W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Cooling System

Convection

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Vibration (Non-Operating)

IEC60068-2-6, 10Hz to 500Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Shock Test (Non-Operating)

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 3 times per direction, 18 times in total

Short Circuit

Hicc-up Mode, Non-Latching (Auto-recovery when the fault is removed).

Protection Against Shock

Class I with Primary Earth connection

Output Voltage Adjustment Range

22-28Vdc

Start-up with Capacitive Loads

8,000µF Max

Operating Altitude

3,000 Meters

Safety Entry Low Voltage

SELV (IEC 60950-1)

Immunity

Generic Standards: EN/BS EN 55024

DC Input Voltage Range

125-375Vdc

Indicator

Green LED (DC OK)

Pollution Degree

2

KC

K 60950-1

Nominal DC Input Voltage

125-250Vdc
