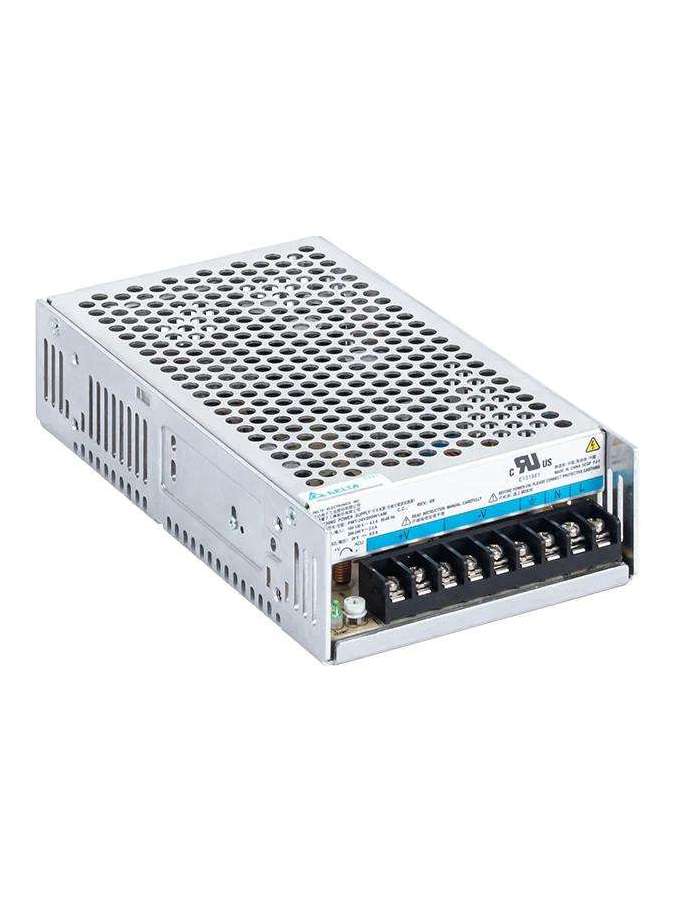

PMT-24V200W1AM DELTA

Ficha técnica

Output Current

8.8A

Output Voltage

24V

Output Power

211W

Line Regulation

± 0.5% typ. (@ 100-132Vac & 200-264Vac)

Load Regulation

± 0.5% typ. (@ 100-132Vac & 200-264Vac )

Start-up Time

1000ms typ. @ 115Vac & 230Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-100% load

Nominal Input Voltage

100-120Vac, 200-240Vac (Selectable by Switch)

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Operating Temperature

-10°C to +60°C (Cold start at -20°C)

Storage Temperature

-25°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms, 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overvoltage

27.6-32.4V, Hicc-up Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

105-150%, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with PE connection

Rise Time

30ms typ. @ 115Vac, 20ms typ. @ 230Vac (100% load)

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Immunity

EN 55024

Output Voltage Adjustment Range

21.6-26.4Vdc

Start-up with Capacitive Loads

8,000µF Max

Pollution Degree

2

Safety Entry Low Voltage

SELV (EN 60950-1)

Over Voltage Category

II
