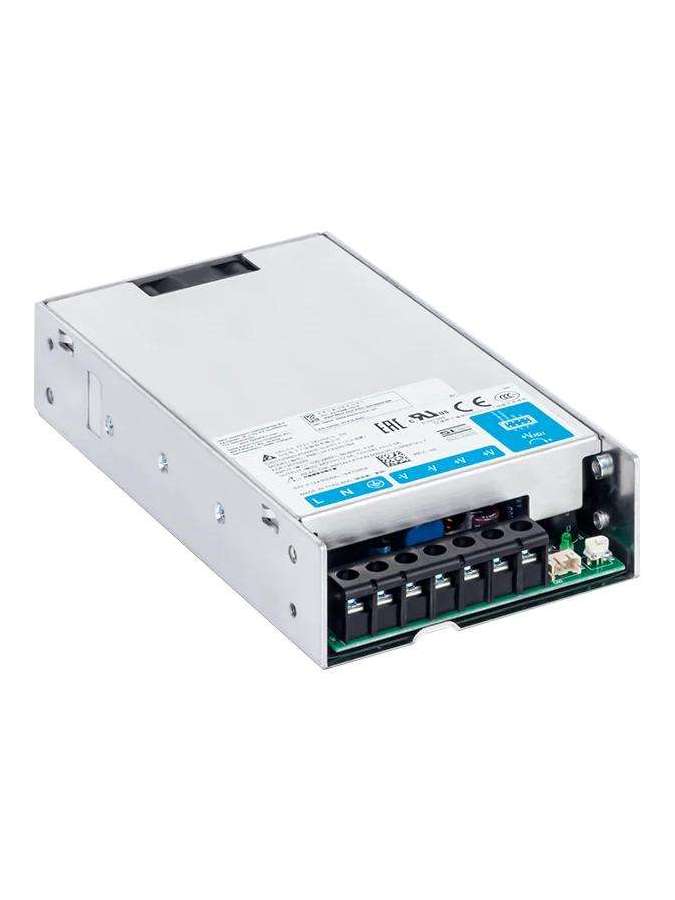

PMC-24V300W1BA DELTA

Ficha técnica

Output Current

12.5A

Output Voltage

24V

Output Power

300W

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/µS, 50% duty cycle @ 5Hz)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Shock Test (Non-Operating)

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 3 times per direction, 18 times in total

Vibration (Non-Operating)

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Short Circuit

Hicc-up Mode, Non-Latching (Auto-recovery when the fault is removed).

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Emission

Generic Standards: CISPR 32, EN/BS EN 55032, KN 32 FCC Title 47: Class B, GB 9254

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Built-in Fan

Immunity

Generic Standards: EN/BS EN 55024, KN 35

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Output Voltage Adjustment Range

V1: 22-28Vdc

DC Input Voltage Range

125-375Vdc

Start-up with Capacitive Loads

8,000µF Max

Nominal DC Input Voltage

125-250Vdc

KC

K 60950-1
