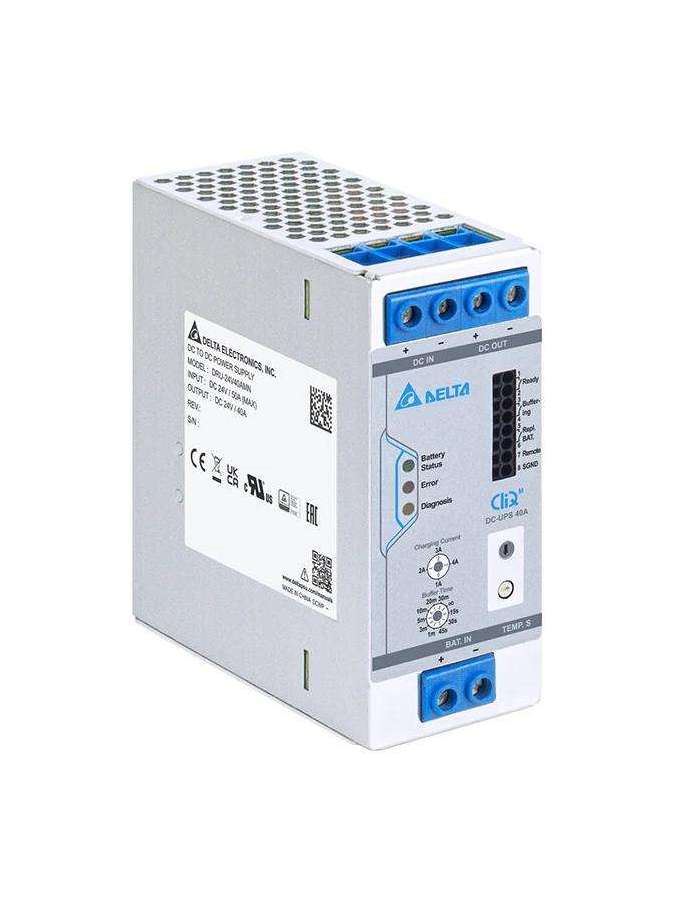

DRU-24V40AMN DELTA

Ficha técnica

Output Current

40A

Output Voltage

24V

Output Power

960W

Nominal Input Voltage

24 Vdc

Input Voltage Range

18-30 Vdc

Input Current

Charging Mode: 1 A, 2 A, 3 A, 4 A (typ.)

Efficiency at 100% load

98% typ.

Case Chassis / Cover

Aluminium

Operating Temperature

-40°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30 G (300 m/s²) for a duration of 18 ms, 1 time per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10 Hz to 500 Hz @ 30 m/s² (3 G peak); 60 min per axis for all X, Y, Z direction

Operating Altitude

0 to 6,000 m (Approvals apply only up to 5,000 m)

Overvoltage

Auto Recovery

Short Circuit

Buffering Mode: Shutdown, Latch Mode

Degree of Protection

IP20

Protection Against Shock

Class III

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Cooling System

Convection

Immunity

EN/BS EN 61000-6-2, EN 61204-3

DC Input Voltage Range

18-30 Vdc

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Vibration (Operating)

EN 60068-2-64 (Wind Power Application)

Pollution Degree

2

Output Voltage Range

17.5-29.5Vdc

Battery Polarity Protection

Yes

Wrong Battery Voltage Protection

Yes, 30 Vdc Max (the maximum voltage that will not cause damage to the unit)

Power Boost Duration

7 seconds

Power Boost Recovery Time

5 seconds

Deep Discharge Protection

Yes (21 V typ.)

Insufficient Input Voltage Protection

Yes

Buffering Time

15 s, 30 s, 45 s, 1 min, 3 min, 5 min, 10 min, 20 min, 30 min, 8

Input Polarity Protection

Yes
