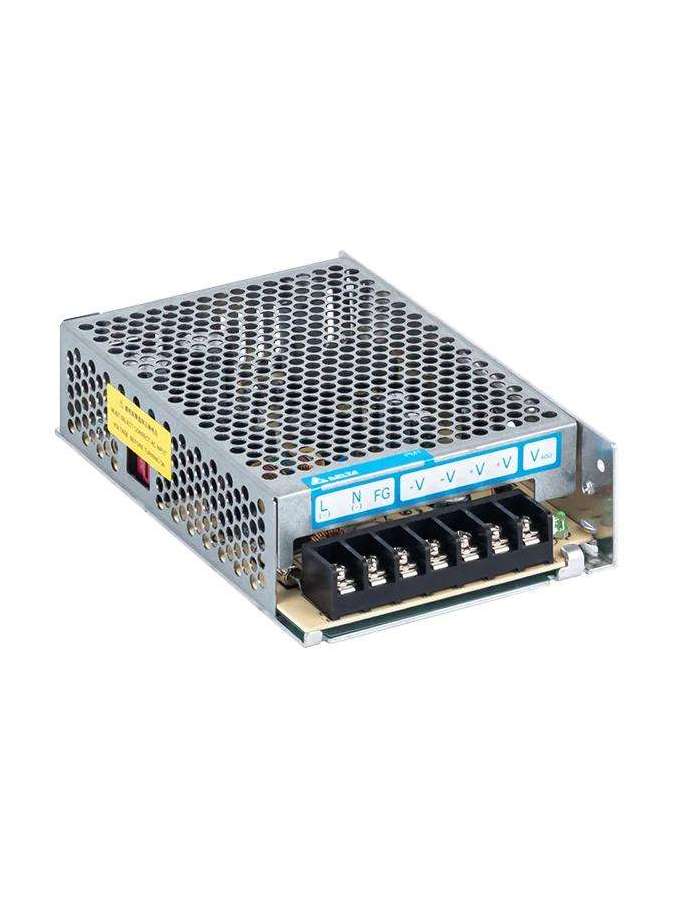

PMT-24V100W1AA DELTA

Ficha técnica

Output Current

4.5A

Output Voltage

24V

Output Power

108W

Line Regulation

± 0.5% typ. (@ 115-132Vac & 176-264Vac,100% Load )

Load Regulation

± 0.5% typ. (@ 115-132Vac & 176-264Vac,0-100% Load )

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-100% load (Slew Rate: 0.1A/µS, 50% duty cycle @ 5Hz)

Nominal Input Voltage

100-120Vac, 200-240Vac (Selectable by Switch)

Input Voltage Range

85-132Vac, 176-264Vac (Selectable by Switch)

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium / SGCC

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times per direction, 18 times in total

Vibration (Non-Operating)

IEC60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms, 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overvoltage

115-135%, Hicc-up Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

110-150%, Hicc-up Mode, Non-Latching (Auto-Recovery)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac, 50% load @ 40°C)

Immunity

EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED (DC OK)

Output Voltage Adjustment Range

22.8-26.4Vdc

Start-up with Capacitive Loads

8,000µF Max

Pollution Degree

2

Safety Entry Low Voltage

SELV

Over Voltage Category

II
