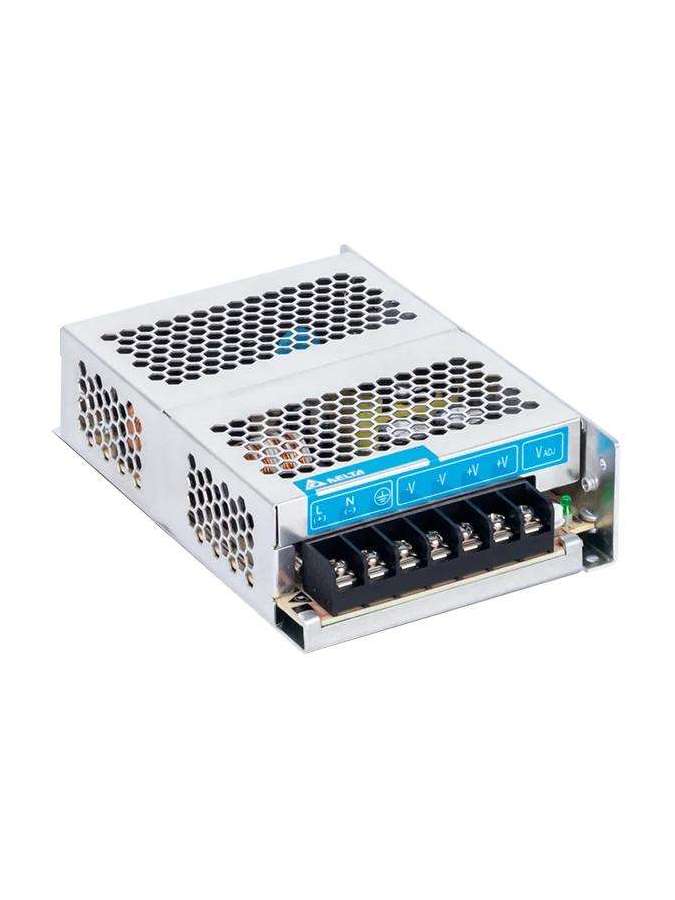

PMH-24V100WCAS DELTA
PMH-24V100WCAS
Ficha técnica
- Output Current
- 4.16A
- Output Voltage
- 24V
- Output Power
- 100W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 85-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Case Chassis / Cover
- Aluminium
- Operating Temperature
- -30°C to +70°C
- Storage Temperature
- -30°C to +85°C
- Operating Humidity
- 5 to 95% RH (Non-Condensing)
- Vibration (Non-Operating)
- IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction
- Operating Altitude
- 0 to 5,000 Meters (16,400 ft.)
- Degree of Protection
- IP20 (PMH-24V100WC?U and PMH-24V100WC?J)
- Protection Against Shock
- Class I with Primary Earth connection
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- Harmonic Current Emissions
- IEC/EN/BS EN 61000-3-2, Class A
- Cooling System
- Convection
- Expected Cap Life Time
- 10 years (115Vac & 230Vac, 50% load @ 40°C)
- Immunity
- EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 55014-2
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Output Voltage Adjustment Range
- 22-28Vdc
- DC Input Voltage Range
- 120-375Vdc
- Start-up with Capacitive Loads
- 8,000µF Max
- Pollution Degree
- 2
- Nominal DC Input Voltage
- 125-250Vdc
- Over Voltage Category
- II
- Bump Test (Operating)
- IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1000 times per direction, 6000 times in total
Referencias específicas
Nuevo
Descargas
Datasheet-PMH-24V100WCAS.pdfNo customer reviews for the moment.
