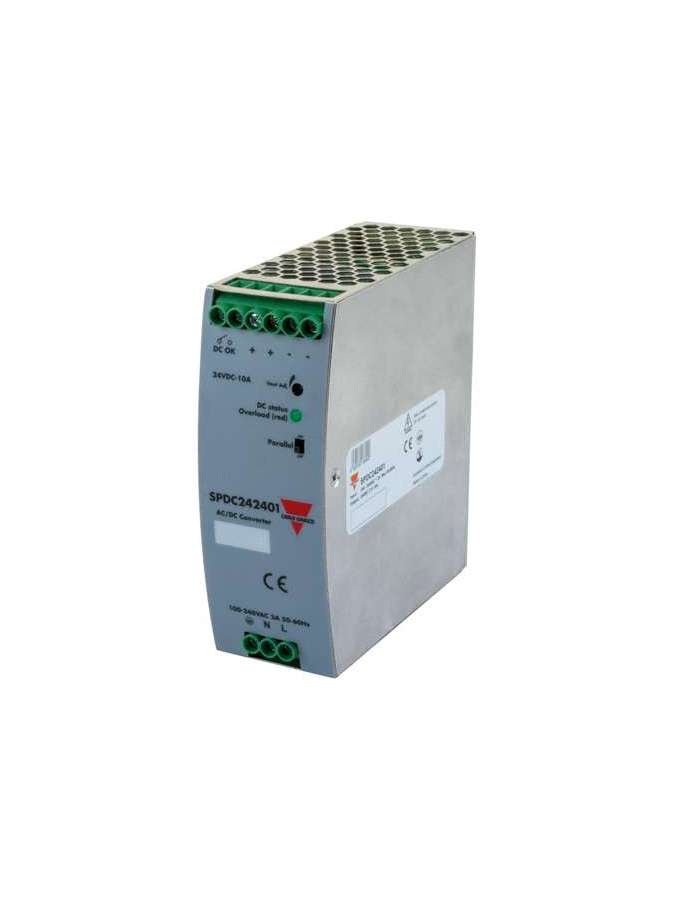

SPDC242401 Carlo Gavazzi

SPDC242401, Switchable Power Supply Type SPDC 240 W Compact DIN Rail Mounting., SPDC242401, The SPDC series of switchable power supplies has been specially designed for use in all automation applications where installation is carried out on a DIN rail and compact dimensions and high performance are required. SPDC power supplies feature the same power as CARLO GAVAZZI's SPD power supply series, which double in size. The greatest compactness is achieved thanks to the limited loss of energy and, therefore, to a high efficiency. This compact SPDC 240 W source in particular is available only with a 24 Vdc output. SPDCs can be connected in parallel with another identical unit to achieve twice the power. A switch is provided on the front panel to select this configuration. They also support redundant 1+1 or n+1 operation, as long as they are used in conjunction with redundant modules., SPDC242401, AC input range, universal DC (85Vca~264Vca, 127Vdc~375Vdc). Active integrated PFC > 0.95. Efficiency up to 94%. Output protections: OVP/OLP/SCP/OTP. Temp. operating environment -25°C ~70°C (-13° to 158°F). Integrated CC OK relay contact. Ultrafine, width: 45 mm.
