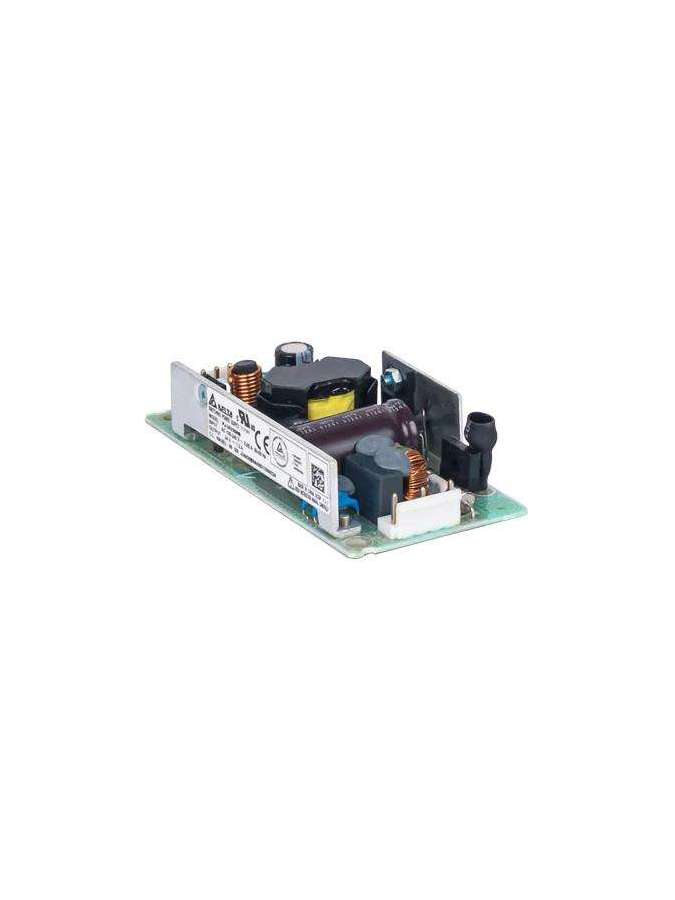

PJ-12V30WBNA DELTA

Sheet

Output Current

2.5A

Output Voltage

12V

Output Power

30W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

SGCC

Cooling System

Convection

Input Terminal

JST B3P5-VH (LF)(SN)

Output Terminal

JST B4P-VH (LF)(SN)

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +75°C

Operating Humidity

5 to 90% RH (Non-Condensing)

Expected Cap Life Time

10 years (115Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Start-up Time

500 ms typ. @ 100 Vac

Hold-up Time

20ms Typ. @ 100Vac

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load

Vibration (Operating)

IEC 60068-2-6, 10Hz to 55Hz @ 19.6 m/S² (2G); 60 min per axis for all X, Y, Z direction

Shock Test (Non-Operating)

IEC60068-2-27,196.1m/S² (20G), 11ms, once along X, Y, and Z axis

Overvoltage

13.8-16.8V, Latch Mode

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class I with PE(Primary Earth) connection

Output Voltage Adjustment Range

10.8-13.2V

Start-up with Capacitive Loads

8,000µF Max

Wire

AWG 22-18

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Immunity

EN/BS EN 55024

Specific references
