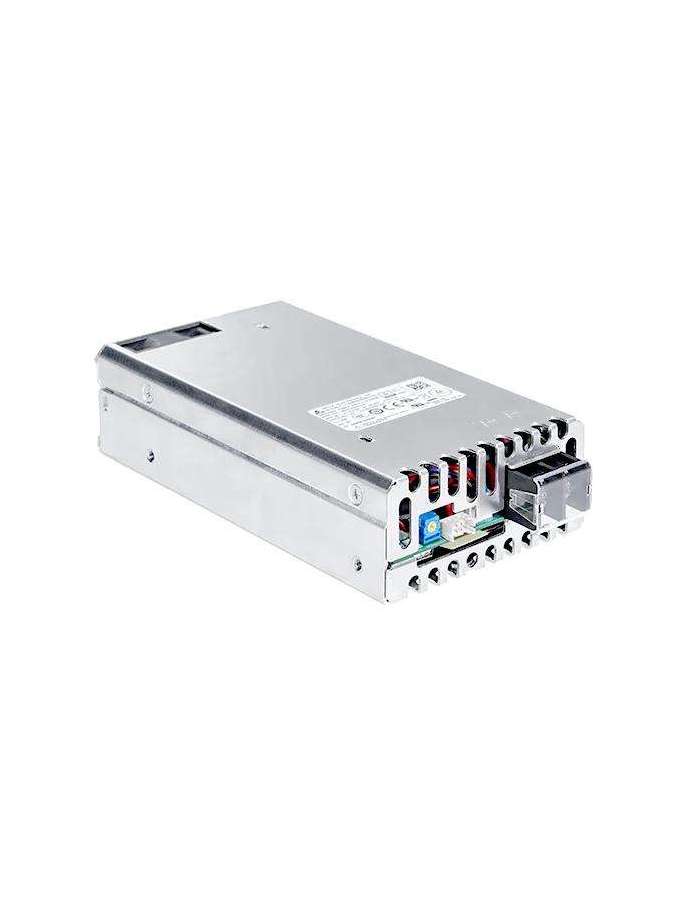

MEB-500A24F AA DELTA

Sheet

Output Current

21A

Output Voltage

24V

Output Power

504W

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

5A typ.@ 120Vac , 2.6A typ. @ 230Vac

Efficiency at 100% load

92% typ. @ 230Vac

Inrush Current

40A typ. @ 230Vac, Cold start, @ 25°C

Power Factor at 100% load

0.98 typ. @ 115Vac, 0.96 typ. @ 230Vac

Case Chassis / Cover

Aluminum

Cooling System

Built-in Fan

Operating Temperature

-20°C to +70°C

Storage Temperature

-30°C to +80°C

Operating Humidity

20 to 90% RH (Non-Condensing)

Expected Cap Life Time

3 years (115Vac, 100% load @ 50°C)

Emission

EN/BS EN 55011 & compliant with EN/BS EN 55032, FCC Title 47:Class B

Harmonic Current Emissions

Meet Class A limit

Line Regulation

96mv max.

Load Regulation

150mv max.

Start-up Time

800ms max.

Hold-up Time

16ms typ. @ 120Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

±10% @50-100% load (Slew Rate: 0.1A/µS, 50% duty cycle @ 100Hz)

Vibration (Operating)

IEC60068-2-6, Sine Wave: 10Hz to [email protected]/s2(2G peak); 10min per cycle, 60min per axis for all X,Y,Z direction

Over Temperature

Protection mode: Latch OFF.

Protection Against Shock

Class I with PE connection

Output Voltage Adjustment Range

21.6V~26.4V

Start-up with Capacitive Loads

8,800µF Max

Wire

AWG 22-12

Shock Test (Operating)

IEC60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3shocks for each 3 directions

Pollution Degree

2

Material and Parts

RoHS Directive 2011/65/EU & EU/2015/863 Compliant
