Process calibrator for simulation of electrical signals as well as frequency and temperature. The process calibrator is also a voltage gauge that does not need network connection and is used to simulate regulatory or unit signals in the MSR technique with which you can check and calibrate almost all parameters of the units and measuring devices. The gauge is therefore used to provide an electrical output signal (mA, mV, V and Hz frequency as well as temperature at °C or °F).
- 4 ... 20 mA (1 kΩ, 24 V feed)
- 0 ... 100,00 mV / 0 ... 1,0000 V / 0 ... 12,000V
- K, J, E, T temperature sensor (°C and °F)
- Frequency range 1 ... 62500 Hz
- Basic accuracy 0.025 %
- Simple handle with the keyboard
- Automatic graduating functions
- To choose between 0 ... 20 mA/ 0 ... 24 mA
- Entry 0 ... 100% (mA, mV, V )
- “open” (mA) or “cortocircuito” (mV, V)
- 4 ... 20 mA (1 kΩ, 24 V feed)
- 0 ... 100,00 mV / 0 ... 1,0000 V / 0 ... 12,000V
- K, J, E, T temperature sensor (°C and °F)
- Frequency range 1 ... 62500 Hz
- Basic accuracy 0.025 %
- Simple handle with the keyboard
- Automatic graduating functions
- To choose between 0 ... 20 mA/ 0 ... 24 mA
- Entry 0 ... 100% (mA, mV, V )
- “open” (mA) or “cortocircuito” (mV, V)

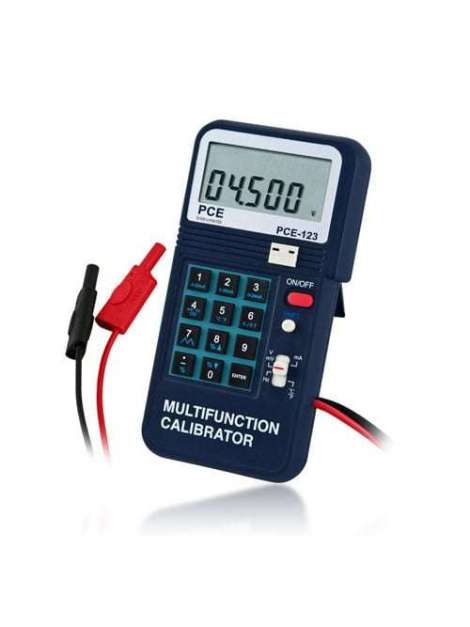

PCE-123
