8801210010 NOVUS AUTOMATION

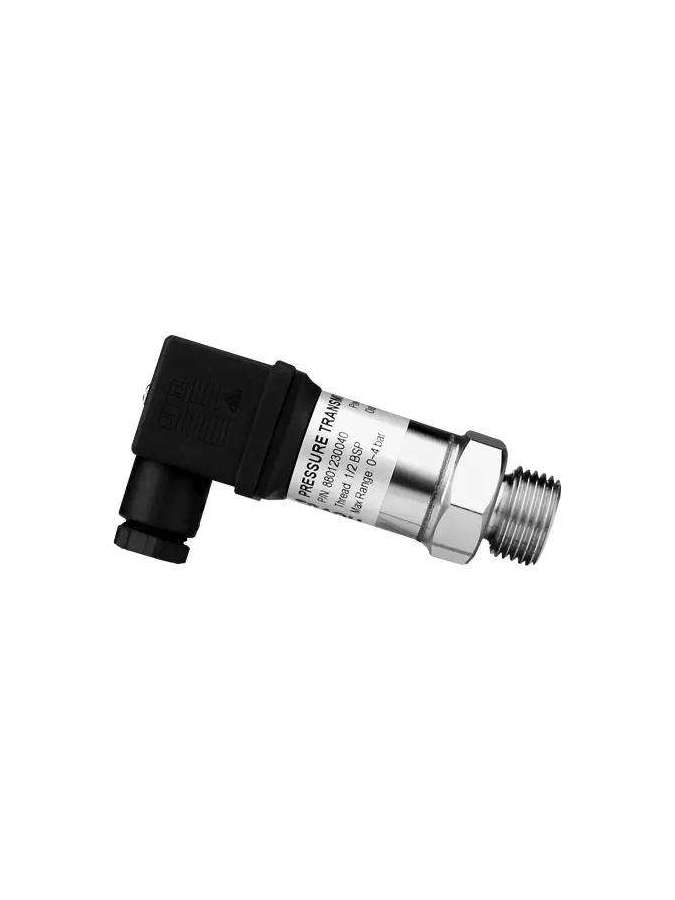

NP640 Oil-Filled 1/4 NPT, DIN, IP65, 4-20MA, 0-1 bar (14.5 Psi) The NP640 Series Configurable Pressure Transmitter is designed for high-accuracy applications, offering customizable pressure ranges and field calibration capabilities. With the ability to adjust the pressure transmission range up to 1/3 of full scale, the NP640 can be calibrated directly in the field or in the lab using the TxConfig-DIN43650 application. This transmitter is ideal for sophisticated applications, providing a reading range from 0 to 400 bar with an accuracy of ±0.25% FS, thanks to its oil-bathed sensor element. Widely accepted in the market, the NP640 is perfect for monitoring pressurized lines in food and beverage processing, cooling water in compressed air networks, and the efficiency of booster pumps.

Wide Measurement Range: Measures from 0 to 400 bar, suitable for high-pressure applications.

High Accuracy: ±0.25% FS ensures precise and reliable measurements.

Reliable Output: Two-wire 4-20 mA for consistent signal transmission.

Flexible Power Supply: 11 to 33 Vdc for versatile applications.

Compact Design: Ø 27 x 88 mm (¼ NPT) for easy integration.

Durable Enclosure: IP67-rated for protection in harsh environments.
