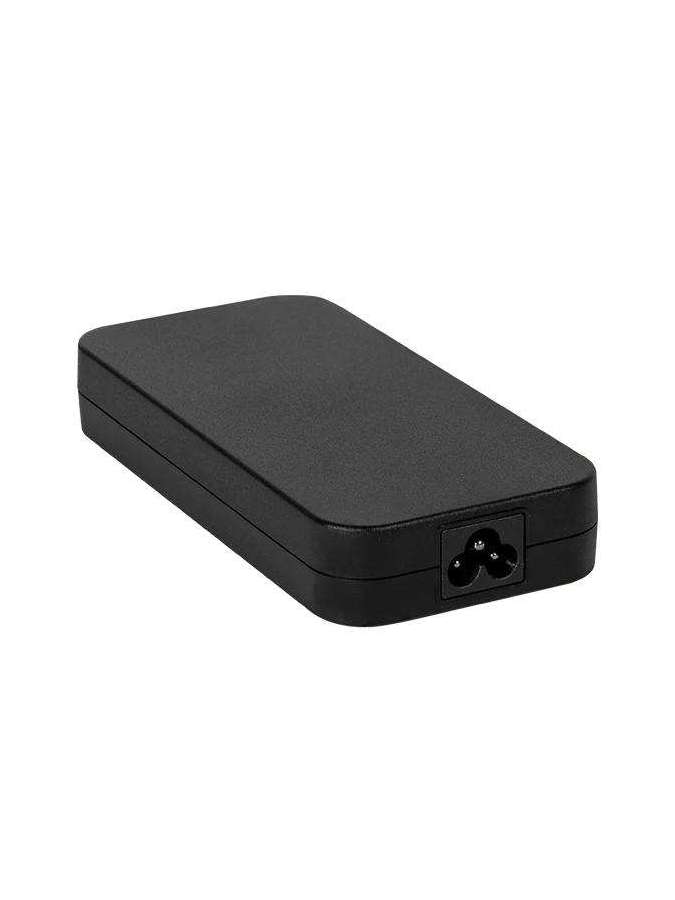

ADT-150A19AA DELTA

Fiche technique

Output Current

7.7A

Output Voltage

19.5V

Output Power

150W

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Efficiency at 100% load

79% @ 115Vac & 230Vac

Inrush Current

No damage

Case Chassis / Cover

PC

Cooling System

Convection

Input Terminal

C6

Output Terminal

Barrel type : O.D: 6.0mm, I.D: 3.5mm, length: 11.5mm

Operating Temperature

-10°C to +60°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5%-95% RH (non-condensing)

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20mins, one cycle for each three axis

Expected Cap Life Time

5 years (50% load @ 25°C)

CE

Comply with EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

Class D; GB17625.1

Voltage Fluctuation and Flicker

IEC 61000-3-3

Line Regulation

± 0.5%

Load Regulation

± 4.5%

Hold-up Time

16ms @ nominal input , full load

Shock Test (Non-Operating)

50G, 11ms, 1 shock for each direction

Overvoltage

27V, Latch mode

Overload / Overcurrent

120-180% , Latch

Over Temperature

Latch Mode

Short Circuit

Latch Mode

Protection Against Shock

Class I

Galvanic Isolation

I/P to O/P: 3000Vac

Leakage Current

0.25mA @ 240Vac/50Hz

Operating Altitude

5,000 meters (16400 feet)

Immunity

EN/BS EN 55024; KN35

Pollution Degree

2

Rise Time

40ms @ nominal input, full load
