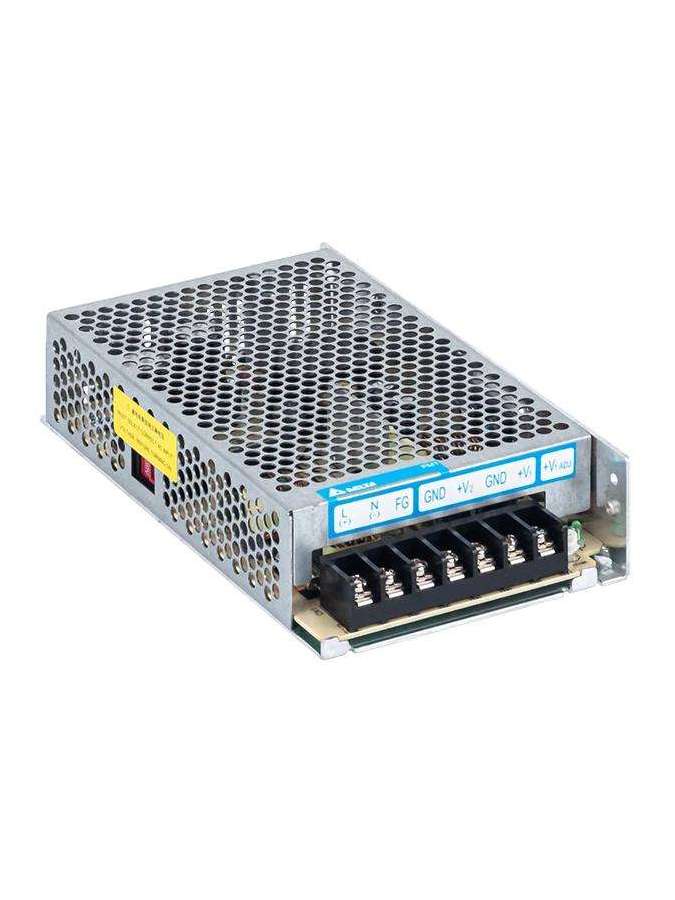

PMT-D2V100W1AA DELTA

Fiche technique

Output Current

3.5A,3A

Output Voltage

24V,5V

Output Power

99W

Nominal Input Voltage

100-120Vac, 200-240Vac (Selectable by Switch)

Input Voltage Range

88-132Vac, 176-264Vac (Selectable by Switch)

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium / SGCC

Cooling System

Convection

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 32, EN/BS EN 55032, FCC Title 47: Class B

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Line Regulation

± 0.5% typ. (@ 100-132Vac & 200-264Vac)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-100% load

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times per direction, 18 times in total

Overvoltage

V1: 115-135%, Hicc-up Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

V1: 110-150%, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

Output Voltage Adjustment Range

V1: 21.6-26.4Vdc

Start-up with Capacitive Loads

8,000µF Max

Immunity

EN/BS EN 55024

Indicator

Green LED (DC OK)

Pollution Degree

2

Material and Parts

RoHS Directive 2011/65/EU Compliant
