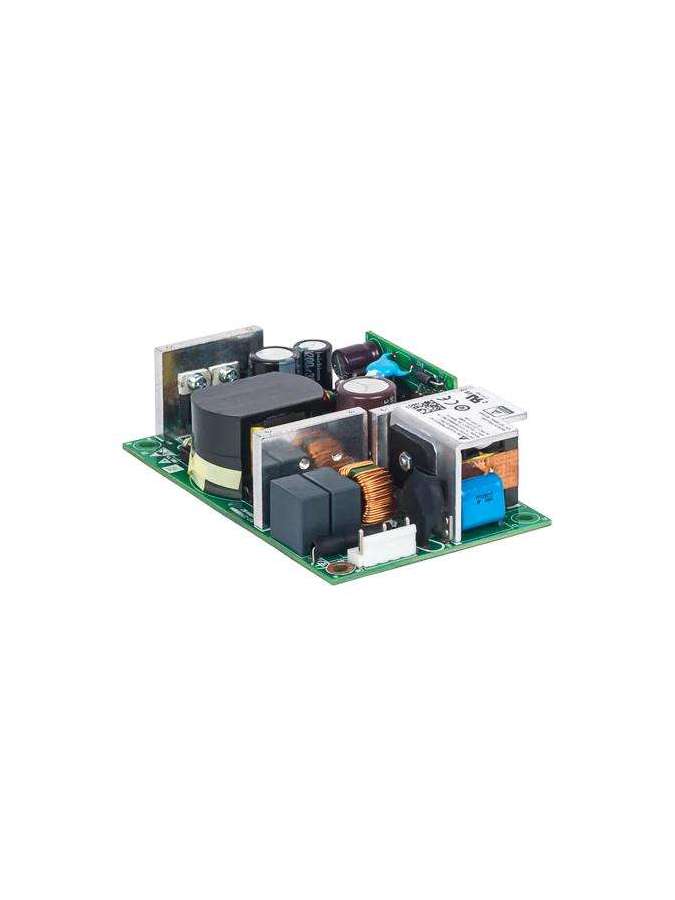

PJT-27V150WBNA DELTA

Fiche technique

Output Current

5.55A,0.5A

Output Voltage

27V,12V

Output Power

150W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Operating Temperature

-10°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine 50G for a duration of 11ms, 3 times per direction, 9 times in total

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Protection Against Shock

Class I with PE connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

Generic Standards: CISPR 22, CISPR 32, EN/BS EN 55022, EN/BS EN 55032, FCC Title 47: Class B

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Immunity

Generic Standards: EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Start-up with Capacitive Loads

V1: 3,000uF Max, VSB: NA

Vibration (Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 25m/S? (2.5G peak); displacement of 0.35mm; 90 min per axis for all X, Y, Z direction

Pollution Degree

2

Safety Entry Low Voltage

SELV (IEC 60950-1)

Over Voltage Category

II
