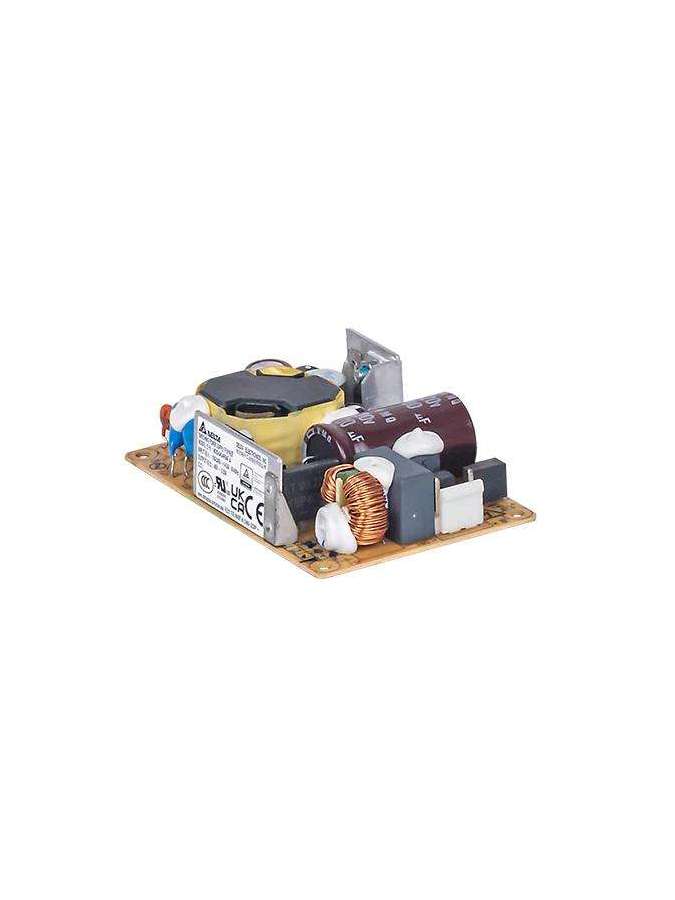

MDS-040APS24 B DELTA
MDS-040APS24 B
Ficha técnica
- Output Current
- 1.67A
- Output Voltage
- 24V
- Output Power
- 40W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 0.85A @ 115Vac, 0.45A @ 230Vac
- Efficiency at 100% load
- 86.3% (typ.)
- Inrush Current
- 30A @ 115Vac, 60A @ 230Vac (typ.)
- Input Terminal
- JST 2P Connector: B2P3-VH(LF)(SN)
- Output Terminal
- JST 4P Connector: B4P-VH(LF)(SN)
- Operating Temperature
- -10°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 10-95% RH (Non-Condensing)
- Vibration (Non-Operating)
- 5-500Hz, 2.09Grms, 20 minutes for each three axis
- MTBF
- 3 Million Hours based on Telecordia SR-332
- Emission
- EN/BS EN 55011, EN/BS EN 55032, FCC Title 47:Class B
- Harmonic Current Emissions
- IEC61000-3-2
- Voltage Fluctuation and Flicker
- IEC61000-3-3
- Line Regulation
- ± 0.5%
- Load Regulation
- ± 1%
- Start-up Time
- 3000ms @ 115Vac
- Hold-up Time
- 15ms @ 115Vac
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% @ 50-100% load
- Shock Test (Non-Operating)
- 50G 11ms, 3 shocks for each direction
- Overvoltage
- 150%, Latch Mode
- Overload / Overcurrent
- 150%~210% of rated load current, Hiccup Mode, Non-Latching, Auto-Recovery)
- Over Temperature
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Short Circuit
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- ITE Safety
- IEC 60950-1, IEC 62368-1, CCC GB 17625.1; GB 4943.1; GB/T 9254.1
- Ripple and Noise
- 34mV pk-pk @ Full load
- Operating Altitude
- 3,000 meters (9842.52 feet)
Referencias específicas
Nuevo
Descargas
Datasheet-MDS-040APS24 B.pdfNo customer reviews for the moment.
