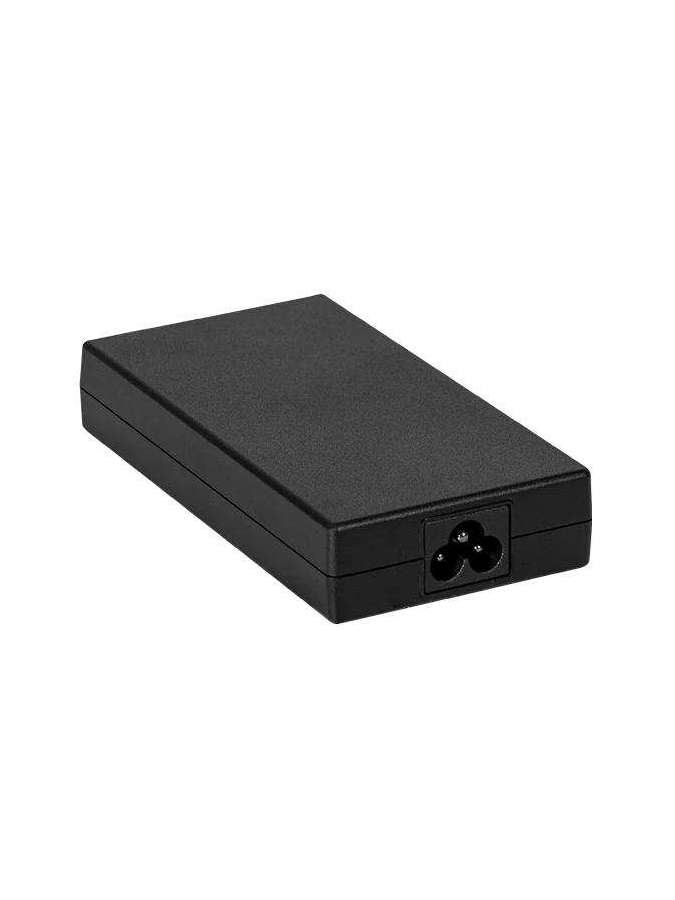

ADT-120A19AA DELTA
ADT-120A19AA
Ficha técnica
- Output Current
- 6.15A
- Output Voltage
- 19.5V
- Output Power
- 120W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Efficiency at 100% load
- 79% @ 115Vac & 230Vac
- Inrush Current
- No damage
- Case Chassis / Cover
- PC
- Cooling System
- Convection
- Input Terminal
- Socket C6 type
- Output Terminal
- Tuning fork (O.D: 5.5mm, I.D: 1.7mm, length: 11mm)
- Operating Temperature
- -10°C to +60°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5%-95% RH (non-condensing)
- Vibration (Non-Operating)
- 5-500Hz, 2.09Grms, 20mins, one cycle for each three axis
- Expected Cap Life Time
- 5 years (50% load @ 25°C)
- CE
- Comply with EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
- Harmonic Current Emissions
- IEC 61000-3-2 Class D ; GB17625.1
- Voltage Fluctuation and Flicker
- IEC 61000-3-3
- Line Regulation
- ± 0.5%
- Load Regulation
- ± 4.5%
- Hold-up Time
- 20ms @ nominal input, full load
- Shock Test (Non-Operating)
- 50G, 11ms, 1 shock for each direction
- Overvoltage
- 29.25V, Latch
- Overload / Overcurrent
- 120-180% , Latch
- Over Temperature
- Latch
- Short Circuit
- Latch
- Protection Against Shock
- Class I
- Galvanic Isolation
- I/P to O/P : 3000Vac
- Leakage Current
- 0.1mA @ 240Vac/50Hz
- Operating Altitude
- 5,000 meters (16400 feet)
- Immunity
- EN/BS EN 55024; KN35
- Pollution Degree
- 2
- Rise Time
- 40ms @ nominal input, full load
Referencias específicas
