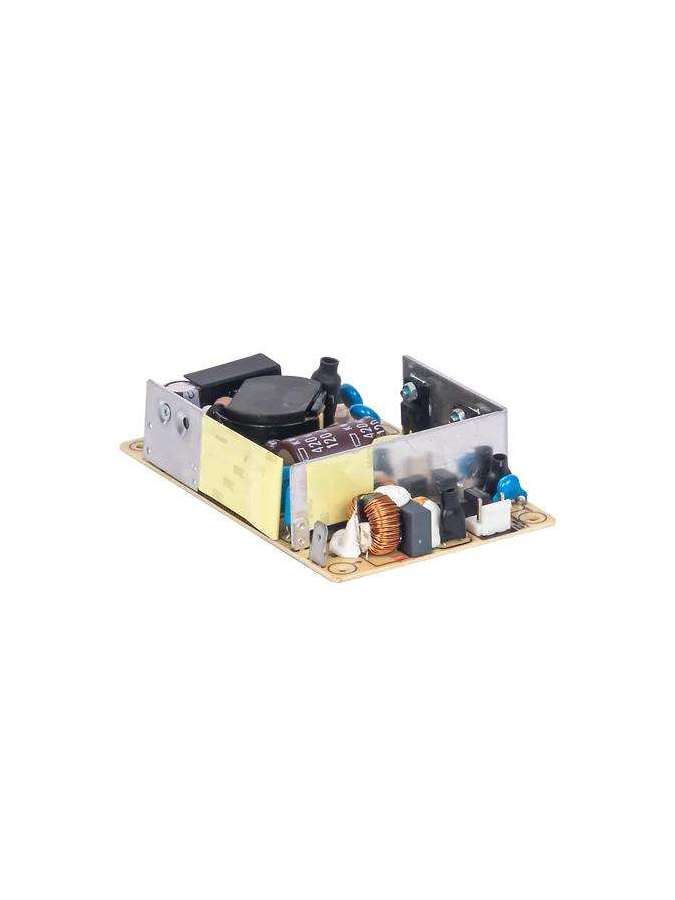

MDS-100APS24 B DELTA

Ficha técnica

Output Current

4.17A

Output Voltage

24V

Output Power

100W

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.5A @ 100Vac, 0.75A @ 240Vac

Efficiency at 100% load

91.08% (typ.)

Inrush Current

30A @ 115Vac, 60A @ 230Vac (typ.)

Input Terminal

JST : B2P3-VH(LF)(SN)

Output Terminal

JST : B8P-VH(LF)(SN)

Operating Temperature

-10°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20 minutes for each three axis

MTBF

3 Million hrs based on Telcordia SR-332

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)

Emission

EN/BS EN 55011, EN/BS EN 55032, FCC Title 47: Class B

Harmonic Current Emissions

IEC 61000-3-2: Meet Class D limit

Voltage Fluctuation and Flicker

IEC 61000-3-3

ESD Immunity

IEC 61000-4-2

EFT

IEC 61000-4-4

Surge

IEC 61000-4-5

Magnetic Field

IEC 61000-4-8

Voltage Dips

IEC 61000-4-11

Line Regulation

±0.5%

Load Regulation

±1%

Start-up Time

3000ms @ 115Vac

Hold-up Time

20ms @ 115Vac

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 3% @ 50-100% load

Shock Test (Non-Operating)

50G 11ms, 3 shocks for each direction

Overvoltage

150%, Latch Mode

Overload / Overcurrent

135% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

Over Temperature

Hiccup Mode, (Non-Latching, Auto-Recovery)

Short Circuit

Hiccup Mode, (Non-Latching, Auto-Recovery)

Protection Against Shock

Class I with PE* connection

Ripple and Noise

55.2 mV pk-pk @ Full load (typ.)

Operating Altitude

Up to 3,000 meters (up to 9,842 feet or 106-70kPa)

Radiated Immunity

IEC 61000-4-3

Conducted Immunity

IEC 61000-4-6
