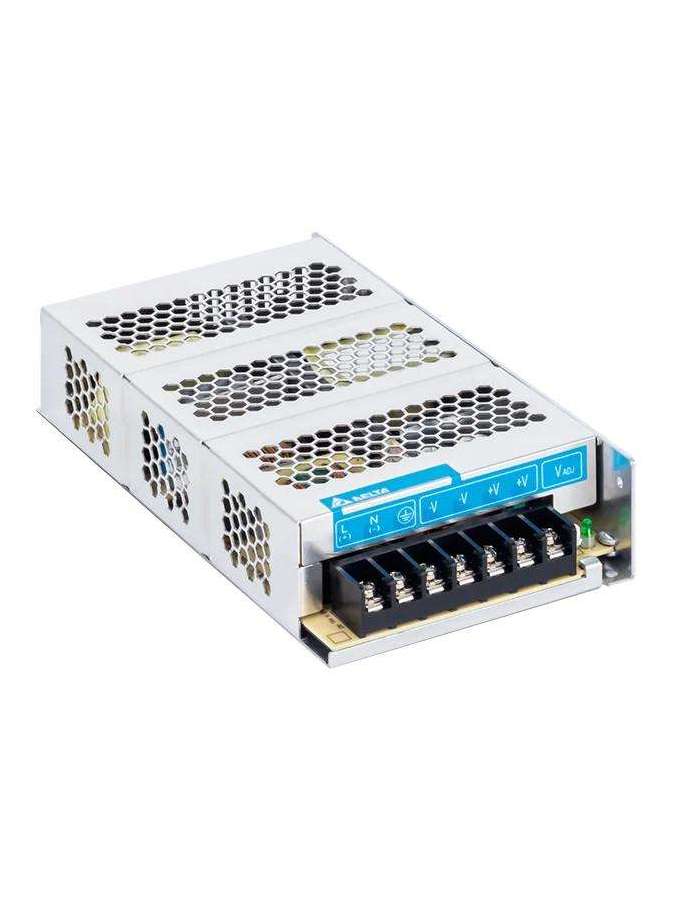

PMH-24V200WCBA DELTA

Ficha técnica

Output Current

8.33A

Output Voltage

24V

Output Power

200W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Cooling System

Convection

Operating Temperature

-30°C to +70°C

Storage Temperature

-30°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,1 times per direction, 2 times in total

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class I with PE connection

Output Voltage Adjustment Range

22-28Vdc

Start-up with Capacitive Loads

8,000µF Max

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-1, EN 55014-2

DC Input Voltage Range

120-375Vdc

Pollution Degree

2

Material and Parts

RoHS Directive 2011/65/EU Compliant

Over Voltage Category

II

KC

K 60950-1
