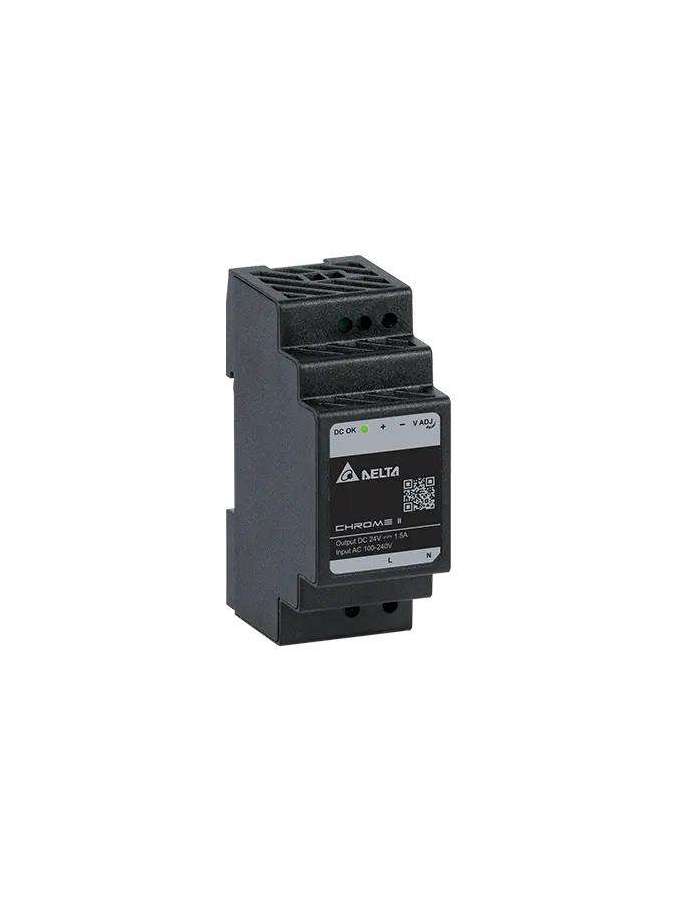

DRC-24V030W1RZ DELTA

Ficha técnica

Output Current

1.5A

Output Voltage

24V

Output Power

36W

Nominal Input Voltage

100-240 Vac

Input Voltage Range

85-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Inrush Current

40 A typ. @ 230 Vac

Case Chassis / Cover

Plastic

Cooling System

Convection

Input Terminal

M2.5 x 2 Pins (Rated 300 V / 16 A)

Output Terminal

M2.5 x 2 Pins (Rated 300 V / 16 A)

Operating Temperature

-0°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Degree of Protection

IP20

Expected Cap Life Time

10 years (115 Vac & 230 Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016

Harmonic Current Emissions

IEC/EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3

Line Regulation

± 0.5% @ 115 Vac & 230 Vac

Load Regulation

± 0.5%

Start-up Time

300 ms typ. @ 115 Vac & 230 Vac

Hold-up Time

14 ms typ. @ 115 Vac & 70 ms typ. 230 Vac (100% load)

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @ 2 G; 10 min per cycle, 60 min for X, Y, Z direction

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class II (No Primary Earth connection is required)

Galvanic Isolation

Input to Output 4.0 kVac

Output Voltage Adjustment Range

21.6-26.4 Vdc

Start-up with Capacitive Loads

8,000 µF max.

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Indicator

Green LED DC OK

Pollution Degree

2

Component Power Supply for General Use

EN 61204-3

Rise Time

30 ms typ. @ 115 Vac & 230 Vac

Internal Fuse

T3.15 A / 250 V

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715
