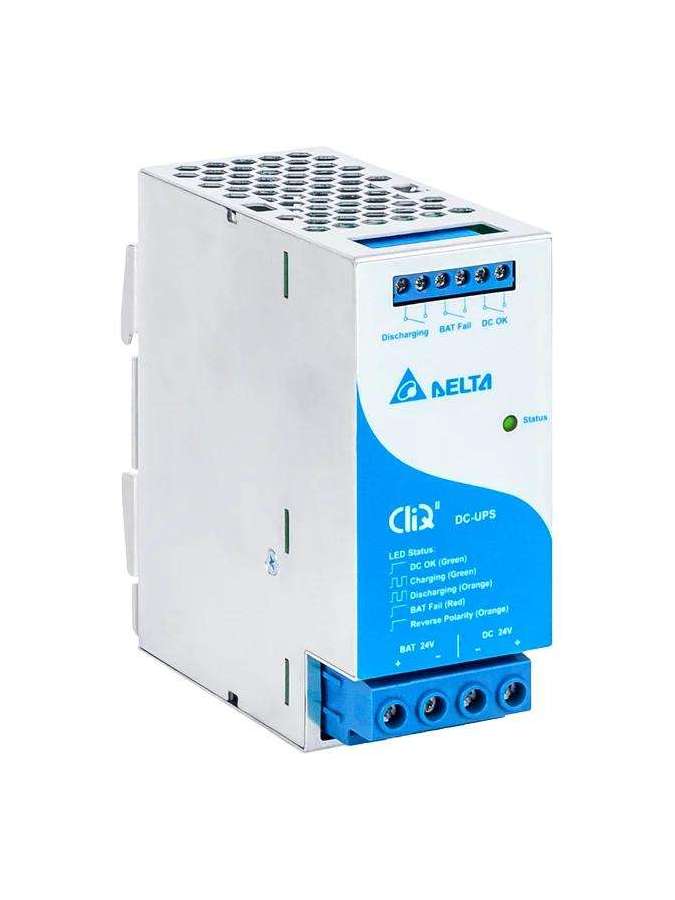

DRU-24V40ABN DELTA

Ficha técnica

Output Current

40A

Output Voltage

24V

Output Voltage Range

23-28Vdc

Output Power

960W

Nominal Input Voltage

24Vdc

Input Voltage Range

24-28Vdc

Input Current

Charging Mode: 2.0 ± 1A

Case Chassis / Cover

Aluminium

Cooling System

Convection

Operating Temperature

-20°C to +60°C (full power)

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction

Degree of Protection

IP20

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total

Overvoltage

Buffering Mode: 29.5-30.5V will not cause damage to the unit, Latch Mode

Overload / Overcurrent

Buffering Mode: 42-52A, Latch Mode

Short Circuit

Buffering Mode: Shutdown, Latch Mode

Protection Against Shock

Class III

Operating Altitude

0 to 3,000 Meters (9,840 ft)

Safety Entry Low Voltage

SELV (EN 60950-1), PELV (EN 60204-1, EN 62477-1)

Immunity

Generic Standards: EN/BS EN 55024, KN 35, EN/BS EN 61000-6-2

DC Input Voltage Range

24-28 Vdc

Pollution Degree

2

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Electrical Equipments of Machines

EN/BS EN 60204-1

Electrical Equipment for Use in Electrical Power Installations

IEC/EN BS EN 62477-1/IEC 62103

Buffering Time

Approx. 280 s at 24V/40A with 15AH battery

Wrong Battery Voltage Protection

Yes, 30Vdc Max (the maximum voltage that will not cause damage to the unit)

Deep Discharge Protection

Yes (23V ± 0.5V)

KC

K 60950-1
