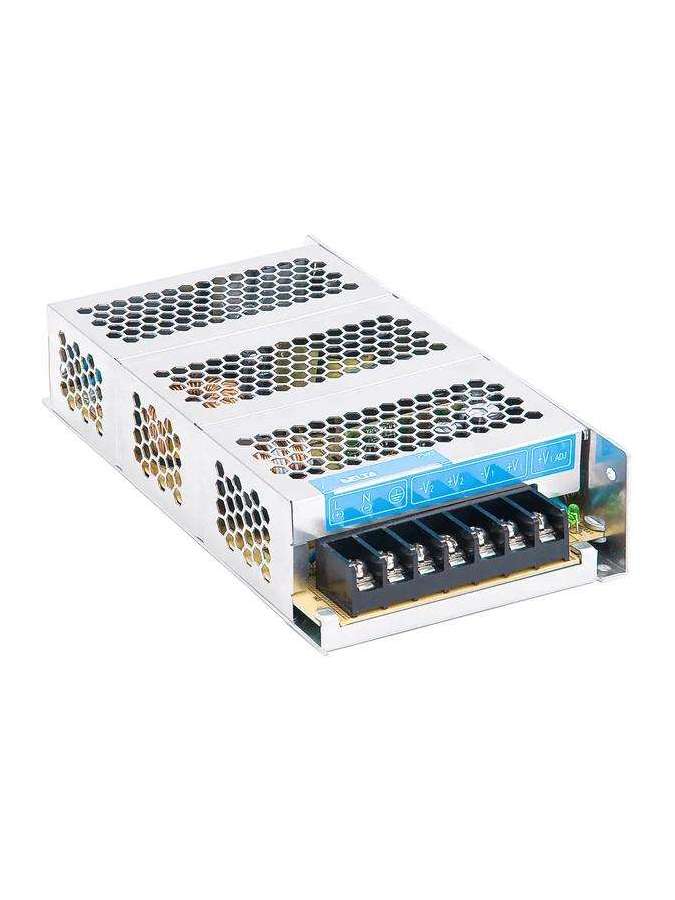

PMC-DSPV100W1A DELTA

Ficha técnica

Output Current

2.7A,7A

Output Voltage

24V,5V

Output Power

100W

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ V1: 0

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Shock Test (Non-Operating)

IEC60068

Vibration (Non-Operating)

IEC60068

Degree of Protection

IPX0

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Emission

Generic Standards: CISPR32, EN/BS EN 55032, FCC Title 47: Class B, GB 9254

Power Factor at 100% load

Conform to EN61000-3-2, Class A

Cooling System

Convection

Immunity

Generic Standards: EN/BS EN 55024

Output Voltage Adjustment Range

V1 : 22.8-26.4Vdc

DC Input Voltage Range

125-375Vdc

Start-up with Capacitive Loads

V1: 4,000JF Max

Nominal DC Input Voltage

125-250Vdc
