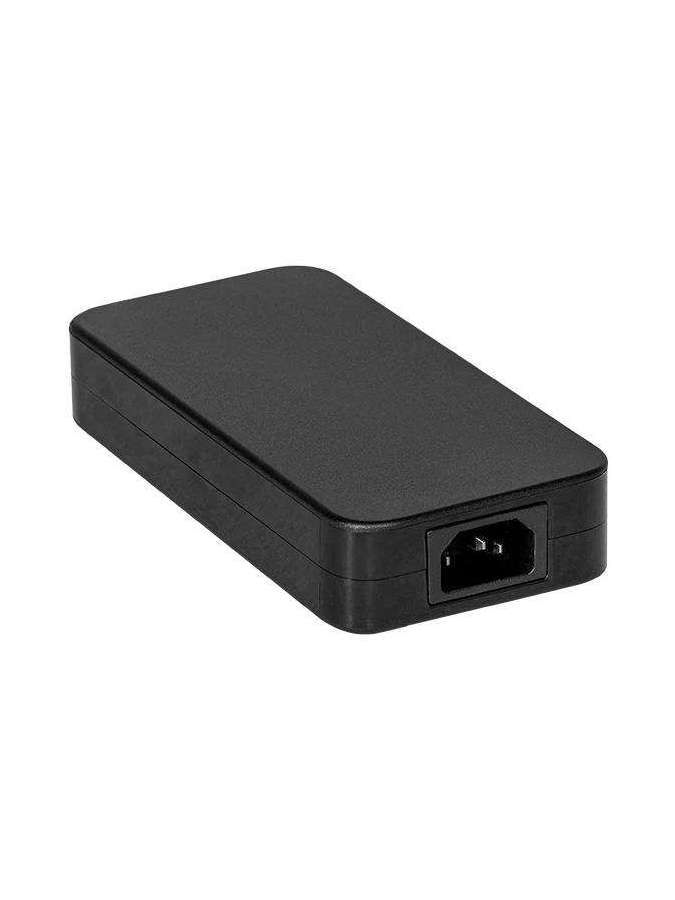

ADT-150C24AC DELTA

Ficha técnica

Output Current

6.25A

Output Voltage

24V

Output Power

150W

Line Regulation

± 0.5%

Load Regulation

± 3.0%

Hold-up Time

16ms @ nominal input, full load

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

PC

Operating Temperature

-10°C to +60°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5%-95% RH (non-condensing)

Shock Test (Non-Operating)

50G, 11ms, 1 shock for each direction

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20mins, one cycle for each three axis

Operating Altitude

5,000 meters (16400 feet)

Overvoltage

33V, Latch mode

Overload / Overcurrent

120-180% , Latch Mode

Over Temperature

Latch Mode

Short Circuit

Latch Mode

Protection Against Shock

Class I

CE

Comply with EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU

Galvanic Isolation

I/P to O/P : 3000Vac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC61000-3-2 Class D ; GB17625.1

Rise Time

40ms @ nominal input, full load

Leakage Current

0.25 mA @ 240Vac/50Hz

Cooling System

Convection

Expected Cap Life Time

5 years (50% load @ 25°C)

Immunity

EN/BS EN 55024; KN35

Voltage Fluctuation and Flicker

IEC61000-3-3

Inrush Current

No damage

Input Terminal

C14

Output Terminal

4Pin Din

Pollution Degree

2
