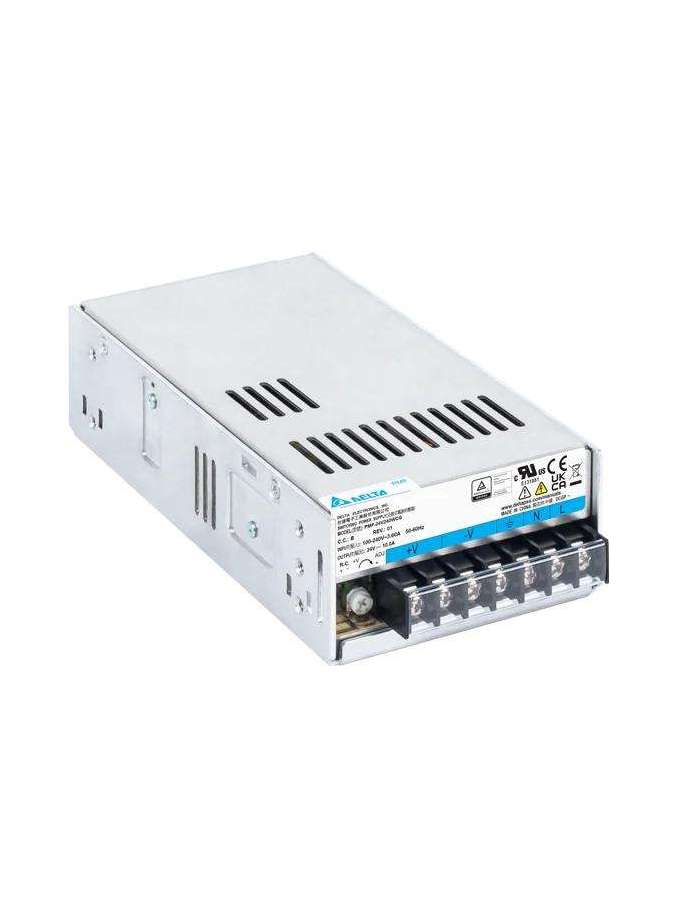

PMF-24V240WCGB DELTA
PMF-24V240WCGB
Ficha técnica
- Output Current
- 10A
- Output Voltage
- 24V
- Output Power
- 240W
- Line Regulation
- ± 0.5% typ. (@ 115Vac & 230Vac)
- Load Regulation
- ± 0.5% typ. (@ 115Vac & 230Vac)
- Start-up Time
- 1200ms typ. @ 115Vac & 230Vac (100% load)
- Hold-up Time
- 20ms typ. @ 115Vac & 230Vac (100% load)
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% (2.4V pk-pk) @ 115Vac & 230Vac (0-100% load)
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 85-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Efficiency at 100% load
- 87.0% typ. @ 230Vac
- Case Chassis / Cover
- Aluminium
- Operating Temperature
- -10°C to +70°C (Cold start at -20°C)
- Storage Temperature
- -25°C to +85°C
- Operating Humidity
- 10-95% RH (Non-Condensing)
- Shock Test (Non-Operating)
- IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 shocks for each 3 directions
- Vibration (Non-Operating)
- IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction
- Operating Altitude
- 0 to 5,000 Meters (16,400 ft.)
- Overvoltage
- 27.6-32.4V, Latch Mode (AC power is recycled)
- Overload / Overcurrent
- 105-150%, Hicc-up Mode, Non-Latching (Auto-Recovery)
- Over Temperature
- Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)
- Short Circuit
- Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)
- Protection Against Shock
- Class I with Primary Earth connection
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
- Emission
- CISPR 32, EN/BS EN 55032, FCC Title 47: Class B
- Harmonic Current Emissions
- IEC/EN/BS EN 61000-3-2, Class A and Class D
- Rise Time
- 50ms typ. @ 115Vac & 230Vac (100% load)
- Cooling System
- Forced Cooling
- Expected Cap Life Time
- 10 years (115Vac & 230Vac, 50% load @ 40°C)
- Immunity
- EN/BS EN 55024
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Indicator
- Green LED (DC OK)
- Output Voltage Adjustment Range
- 21.6-26.4Vdc
- Start-up with Capacitive Loads
- 8,000µF Max
- Wire
- AWG 20-12
- Pollution Degree
- 2
- Safety Entry Low Voltage
- SELV (EN 60950-1)
