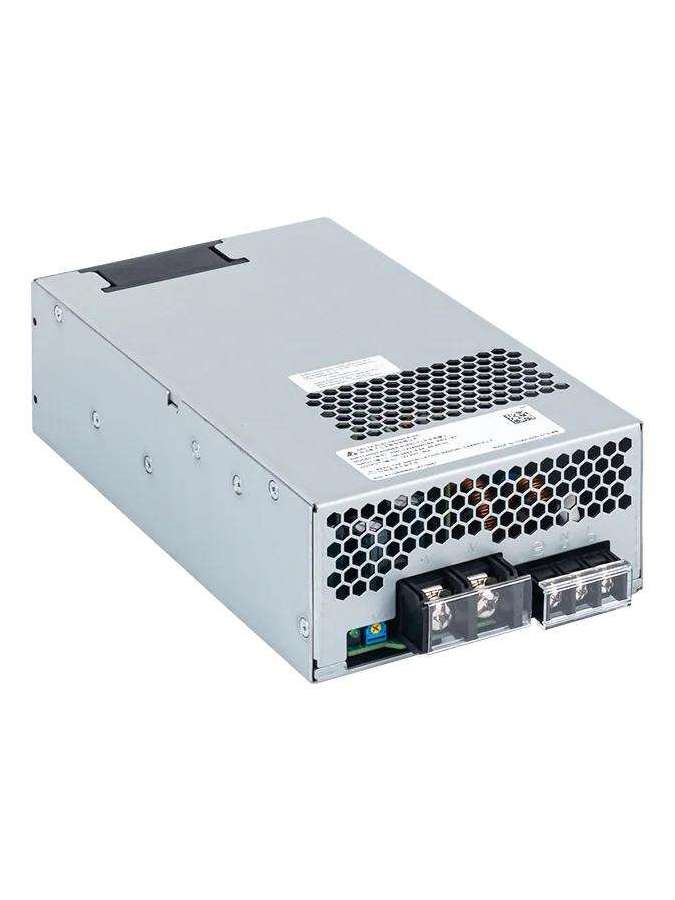

PMC-12V600W1BA DELTA

Ficha técnica

Output Current

50A

Output Voltage

12V

Output Power

600W

Nominal Input Voltage

100-240 Vac

Input Voltage Range

85-264 Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

SECC

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +75°C

Operating Humidity

5 to 95% RH

Operating Altitude

0 to 3,000 Meters (9,840 ft.)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed).

Protection Against Shock

Class I with PE* connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Forced Cooling (Built-in Fan)

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED DC OK

Input Terminal

M3.5 x3 Pins (Rated 300V/20A)

Output Terminal

M6 x2 Pins (Rated 600V/50A)

Output Voltage Adjustment Range

10.8-13.2 Vdc

DC Input Voltage Range

120-375 Vdc

Start-up with Capacitive Loads

10,000 µF Max

Shock Test (Operating)

IEC 60068-2-27, 30G (300m/S² for a duration of 18ms 1 times per direction, / times in total

Pollution Degree

2

Safety Entry Low Voltage

SELV (IEC 60950-1)

Over Voltage Category

II

Material and Parts

RoHS Directive 2011/65/EU Compliant
