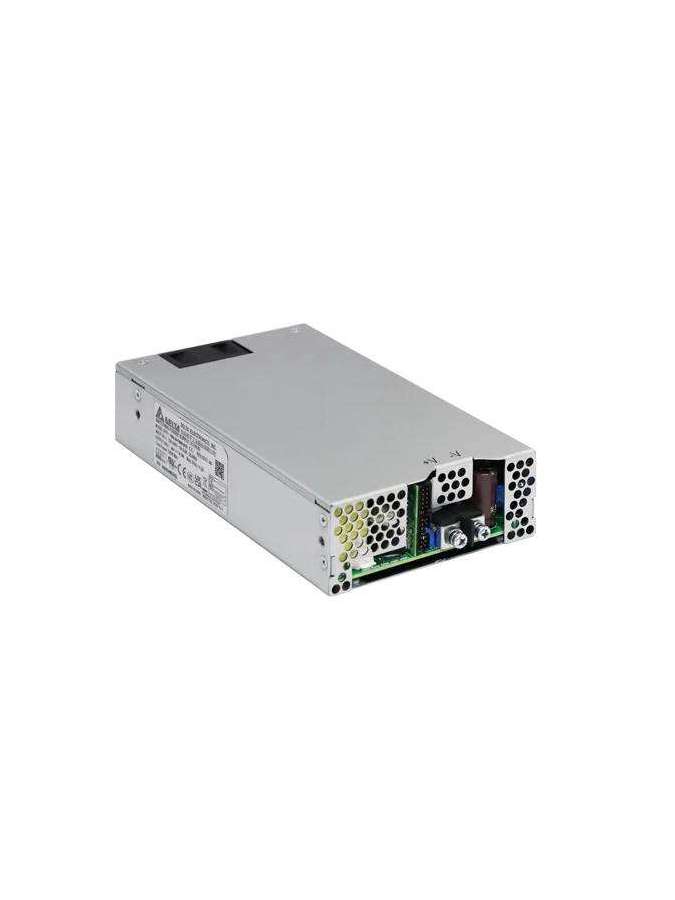

PMS-24V750W1BTD DELTA

Ficha técnica

Output Current

0-31.25A

Output Voltage

24V

Output Power

750W

Line Regulation

±0.5%

Load Regulation

±1%

Start-up Time

2,000 ms with AC turn on

Hold-up Time

12 ms typ. @ 100% load, with nominal input range

Nominal Input Voltage

100-240 Vac

Input Voltage Range

85-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

9 A max.

Efficiency at 100% load

94% typ. @ 230 Vac

Case Chassis / Cover

SGCC

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Overvoltage

Main output 145% of rated normal voltage, Latch Mode Standby 125% of rated voltage, Latch Mode

Over Temperature

Latch Mode for Main output

Short Circuit

Hiccup Mode to Main output / Standby (Non-Latching, Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Protection Earth connection

MTBF

500K hrs based on Telcordia SR-332 (@ 115 Vac, 100% Load, 35°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC/EN 61000-3-2 Meet Class A limit

Power Factor at 100% load

0.95 @ 115 V/50 Hz, 230 V/50 Hz

Cooling System

Force Cooling

Expected Cap Life Time

26,280 hrs, (@115 Vac, 100% load @ 25°C)

Voltage Fluctuation and Flicker

EN 61000-3-3

Inrush Current

40 A @ 264 Vac, cold start

Input Terminal

M3 x 3 Pins, AC Input

Output Terminal

M4 x 2 Pins, CN101, 102 / DC Output

Output Voltage Adjustment Range

24-28 Vdc

Start-up with Capacitive Loads

6,000 uF

Power Dissipation

5 W typ. @ remote off status

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 5 Hz to 500 Hz @ 2G; 20min for X, Y, Z direction

Pollution Degree

2

Peak Power

900 W peak for 3 sec, @ 180~264 Vac
