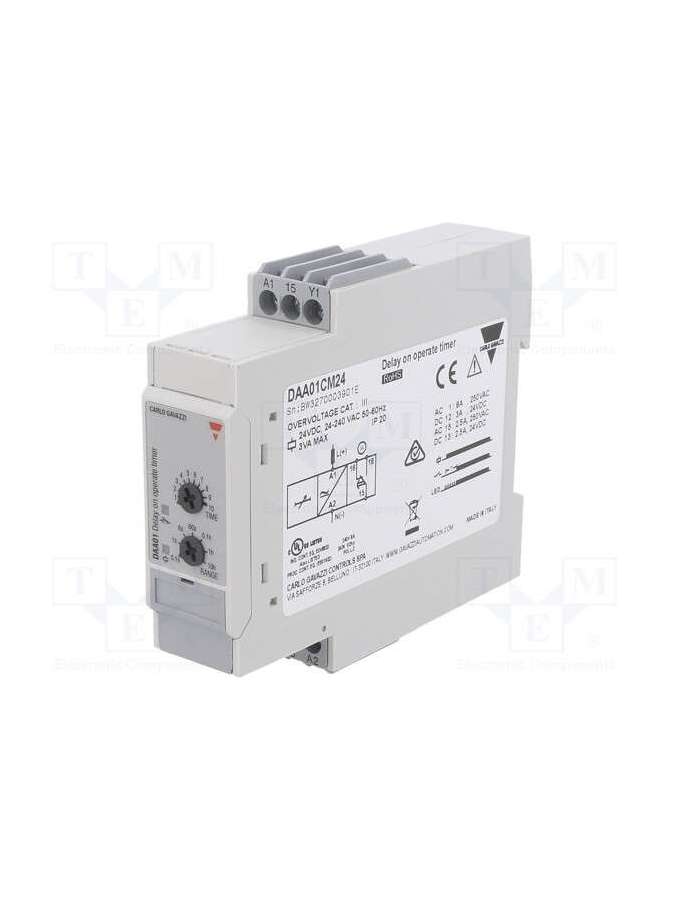

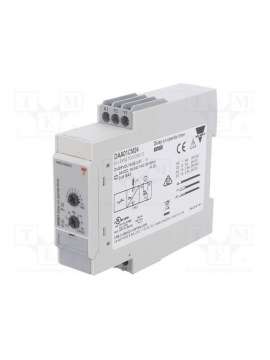

DAA01CM24 Carlo Gavazzi

DAA01CM24, Timers Delay on Operate Type DAA01, PAA01, DAA01CM24, Multi-voltage delay on operate timer with 7 selectable time ranges within 0.1 s and 100 h. For mounting on DINrail (DAA01) or plug-in (PAA01)., DAA01CM24, The yellow LED, flashing when timing, is ON as soon as the relay turns ON. The second relay can operate as instantaneous or delayed changeover contact. The selection is made by a DIPswitch placed under the plastic door on the device's front. The set delay period begins as soon as the power supply is connected. At the end of the set delay the relay operates and does not release until the power supply is interrupted for at least 200 ms. If the power supply is interrupted for at least 200 ms before the relay operates the time is set to zero and the circuit is ready for a new time period.
