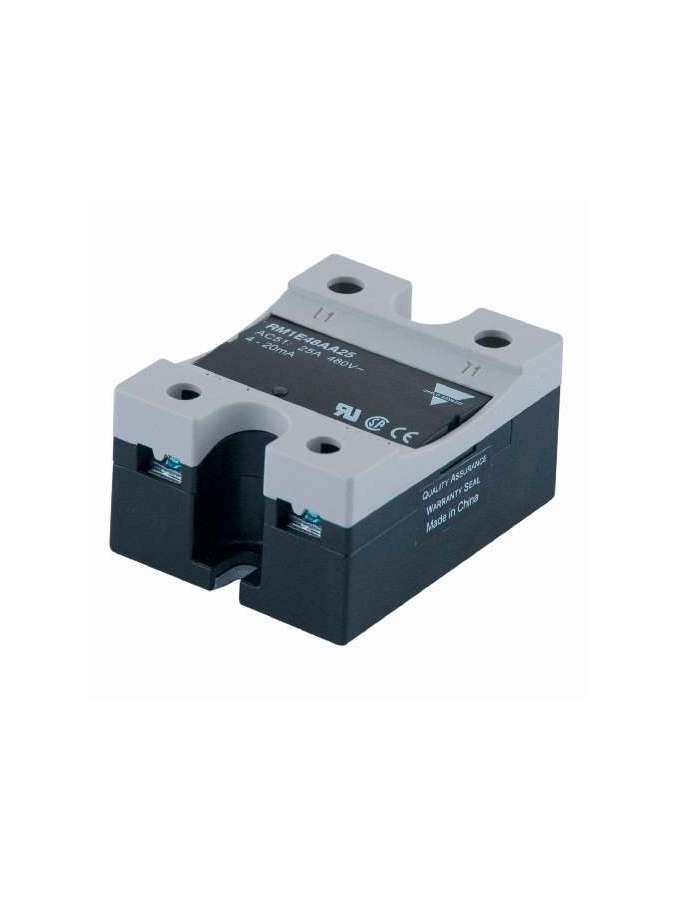

RM1E48AA50 Carlo Gavazzi

RM1E48AA50, Industrial Solid State Relays, Single Phase Analog Connection Model RM1E,, RM1E48AA50, The analog connection relay works according to the principle of phase angle control, that is, the connection point of the AC sine wave output depends on the control voltage. 4 mA or 0 VDC correspond to 'no connection' and 20 mA or 10 VDC correspond to full sine wave (almost linear power response). The relay is deactivated (OFF) every time the output intensity passes through zero, and is activated (ON) according to the applied control intensity., RM1E48AA50, Solid State Relay for AC. Analog connection (phase angle control) for resistive and slightly inductive load applications. Control voltage: 4 to 20 mA or 0 to 10 V. Nominal current: 25, 50, 75, 100 and 125 ACArms. Rated voltage: Up to 600 VCArms. Variable LED indication according to the input intensity. Built-in RC circuit. Polarized control connector for a secure connection in the voltage control model.
