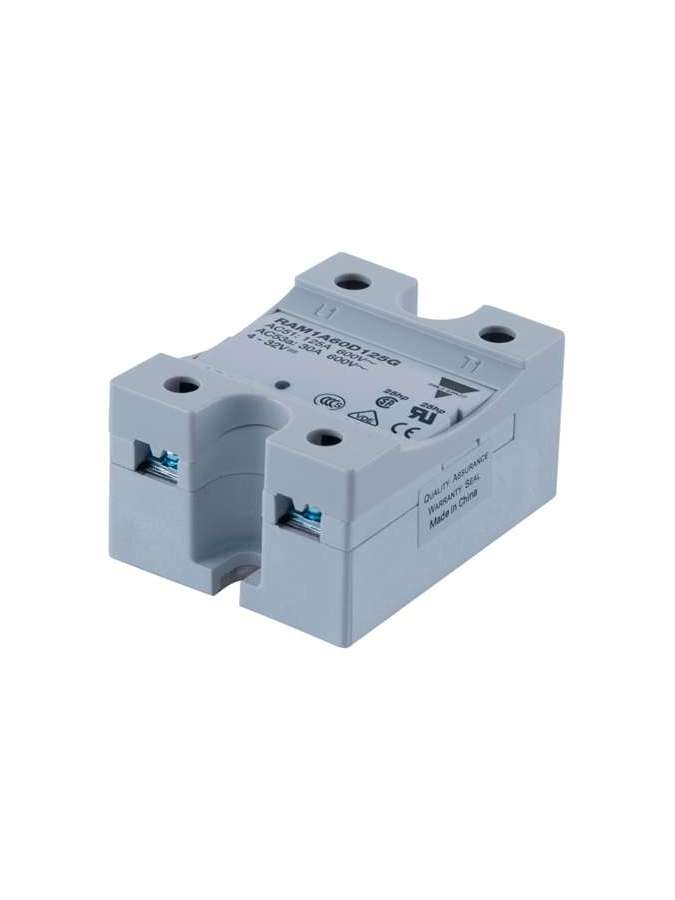

RAM1A60A100G Carlo Gavazzi

RAM1A60A100G, Industrial Solid State Relays, 1 ZS phase with integrated LED and varistor Models RAM1A.G., RAM1A60A100G, The single-phase industrial relay with anti-parallel thyristors at the output is the most widely used industrial static relay, due to the multiple application possibilities. The relay can be used for resistive, inductive and capacitive loads. ZS switching connects when the sine curve passes through the voltage value of 0 and disconnects when the intensity sine passes through 0. The integrated varistor allows protection against voltage transistors. The LED indicates the status of the control input. The cap with fixing clip ensures IP20 protection against unwanted physical contacts on the input and output terminals. Output terminals support unipolar cables up to 16 mm2., RAM1A60A100G, AC Solid State Relay. Direct copper welding (CCB technology). Nominal values: up to 125 ACArms and 690 VCArms. 2 control voltages: 3-32 VDC* and 20-280 WLV/22-48 VDC. Varistor integrated into the output. Led. Built-in cover covers with IP protection. Self-assemblieving terminals. Box without molding mass. VDE certificate for incandescent wire test according to EN60335-1.
