RAM1A23A50 Carlo Gavazzi

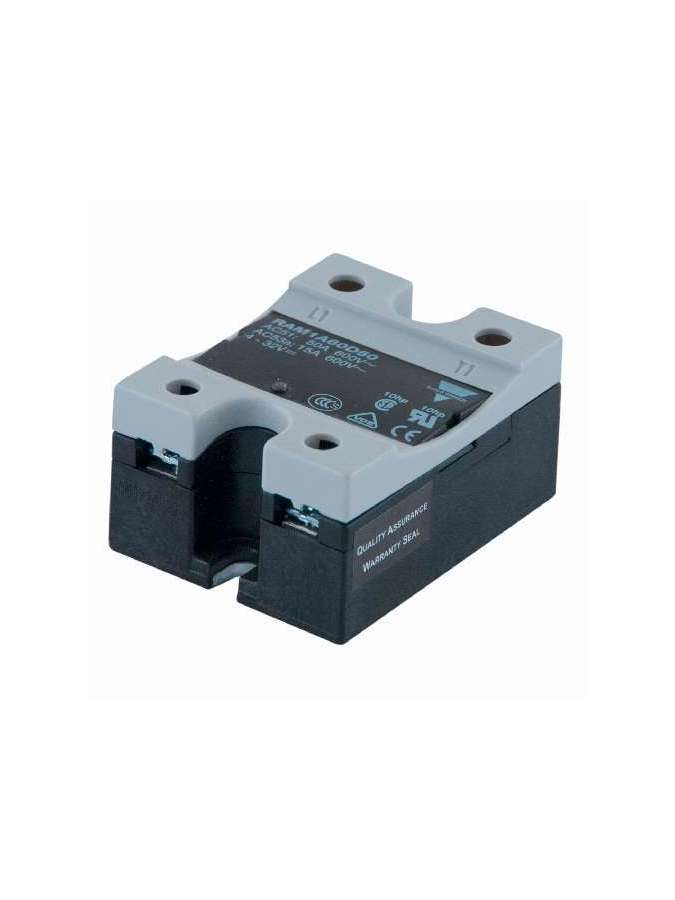

RAM1A23A50, SOLID STATE Relays Industrial, 1-Phase ZS (IO) w. LED Types RAM1A, RAM1B., RAM1A23A50, Single-phase industrial relays with antiparallel thyristor output are the most widely used industrial static relays thanks to their multiple application possibilities. These relays can be used with resistive, inductive and capacitive loads. The zero-pass connection relay is connected when the sine voltage curve passes zero, and disconnects when the intensity passes zero. The instant connection relay with DC control input can be used for phase angle control. The built-in RC circuit provides protection against transients. The LED indicates the status of the control input. The built-in cover covers ensures touch protection (IP 20). Its protected output terminals can be connected to cables up to 16 mm2., RAM1A23A50, AC Solid State Relay. Zero-pass connection (RAM1A) or instant connection (RAM1B). Direct copper welding (DCB technology). Led. Built-in cover covers with IP protection. Self-assemblieving terminals. Box without molding mass. 2 control voltages: 3-32 VDC* and 20-280 WLV/22-48 VDC. Nominal values: up to 125 ACArms and 690 VCArms. Non-repetitive voltage: up to 1600 Vp. Opto-isolation 4000 VCArms. Built-in self-connection surge protection (Z suffix option).
