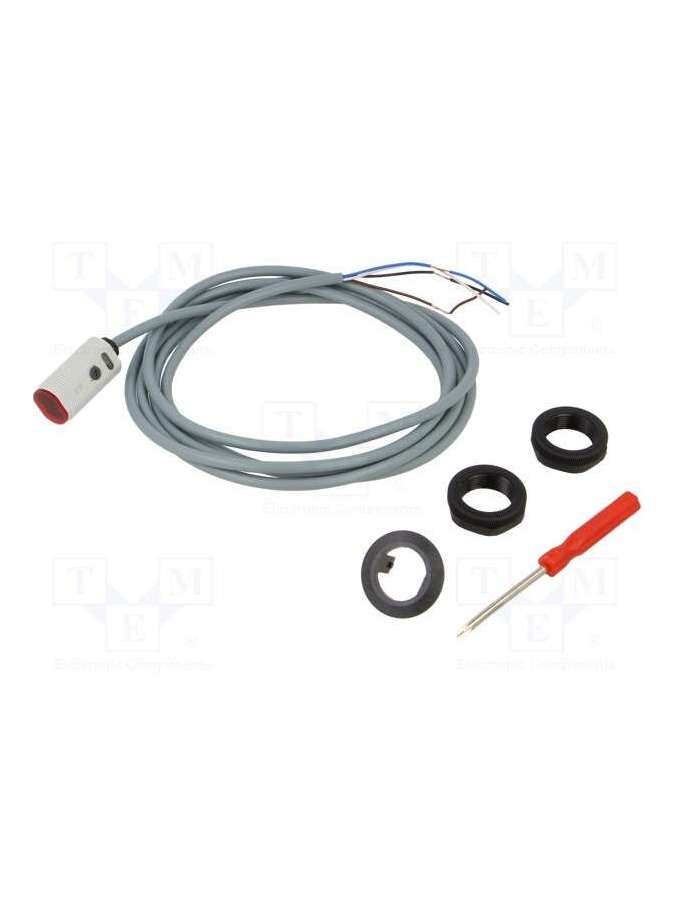

PA18CAD04PAWS Carlo Gavazzi

PA18CAD04PAWS, Photocells Direct reflection Model PA18CAD04. WS,DC., PA18CAD04PAWS, The PA18CAD04 Series... WS is part of a family of economical and general-purpose direct reflection sensors in 18 mm cylindrical ABS industrial box. Sensors are useful in applications where high-precision detection and a small size are required. Compact box and high power LEDs for an excellent performance-size ratio. The potentiometer used for sensitivity adjustment makes the sensors extremely flexible. The output type is NPN or PNP, and the output switching function is NA and NC. The sensor is characterized by a wide detection angle and a small blind zone., PA18CAD04PAWS, Miniature sensor range. Range: 0.4 m. Adjustment of the sensitivity by potentiometer. Modulated red light of 625 nm. Supply voltage: from 10 to 30 VDC. Output: 100 mA, NPN or PNP, NA and NC. Degree of protection IP 67, IP 69K. LED indication for output, stability and power. Protection: polarity reversal, short circuits and transients. Version with cable or connector. High immunity to electromagnetic interference (EMC). Wide detection angle - reduced blind zone.
