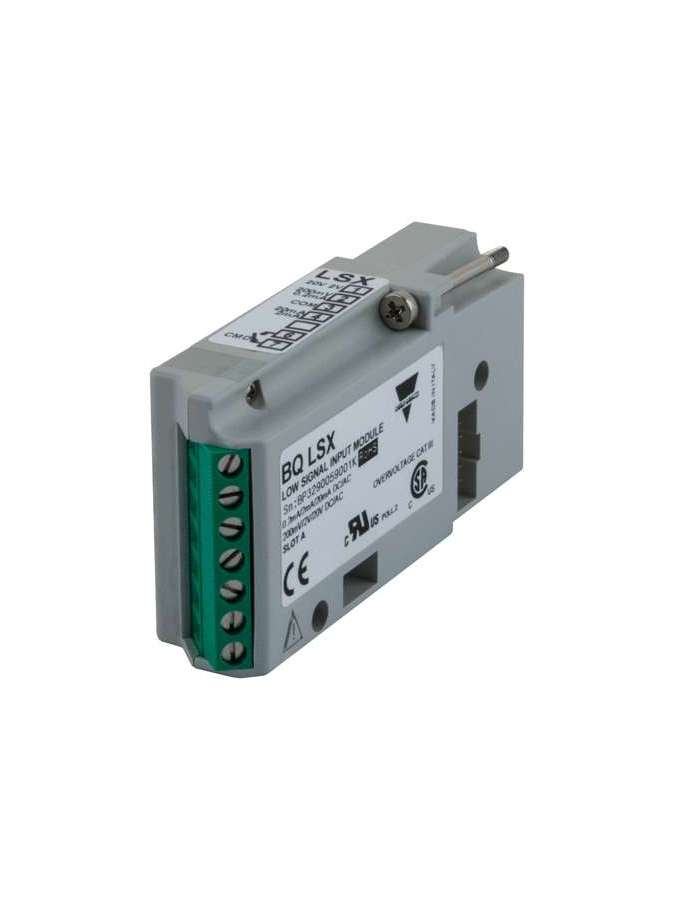

BQLSX Carlo Gavazzi

BQLSX, Digital Panel Indicators Indicator and Modular Controller Model UDM35, BQLSX, Digital panel indicator based on a microprocessor, with 3 1/2 digit LED display, for measurements of intensity, voltage, temperature, resistance, ratio, speed, frequency and period. Easy programming of measurement scales and functions from the keyboard or from a computer using the optional UdmSoft software. The UDM35 also includes max.-min storage functions. and access key with two levels of protection. Panel mount box with front panel protection rating: IP67, NEMA12, NEMA4x "indoor use only"., BQLSX, Front protection rating: IP67, NEMA12, NEMA4x "indoor use only". Linearization of V and A inputs, up to 16 points. Modular multi-entry instrument with 3 1/2 digit LED display. Reading accuracy 0.1%. TRMS measurements of AC intensity and voltage. AC/DC intensity measurements: selectable scale (200μA to 5A). AC/DC voltage measurements: selectable scale (200mV to 500V). Temperature measurements in °C or °F (Pt100-250-500-1000, Ni100, TC J-K-S-T-E). Resistance measurements: selectable scale (20Ω to 20kΩ). Double input for measurement of ratio, speed, frequency and period (0.001Hz to 50kHz). Up to 4 digital outputs (optional). 20mA/10VDC analog output (optional). RS485 or RS232 serial port (optional). Communication protocol MODBUS, JBUS.
