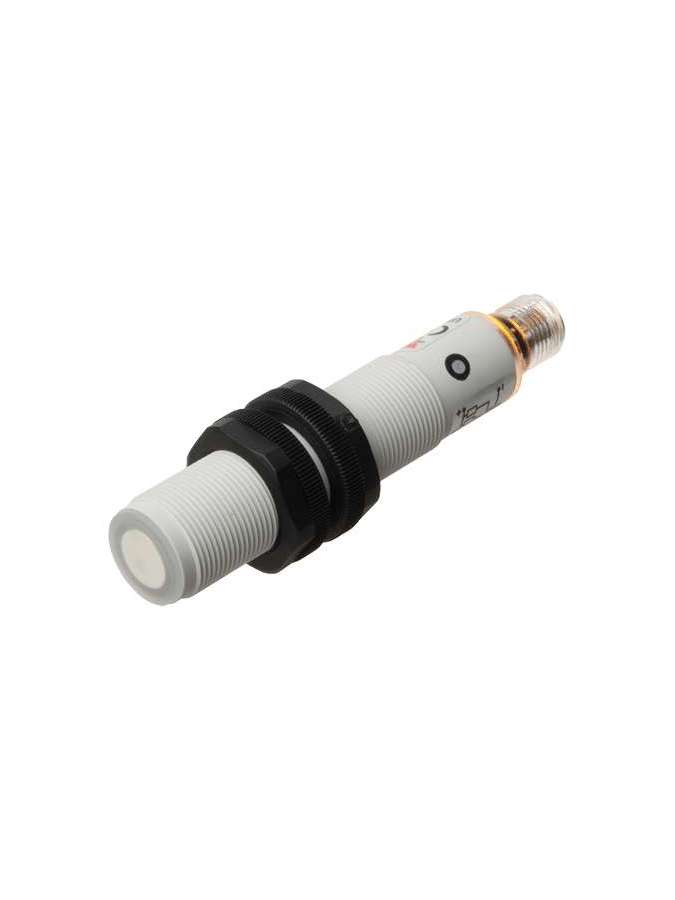

UA18CAD09PKM1TI CARLO GAVAZZI

UA18CAD09PKM1TI, Ultrasound, direct detection, analog and digital output Models UA18CAD...... TI, UA18CAD09PKM1TI, Ultrasonic sensor family with direct detection, with detection distances of 50-400 mm, 100-900 mm and 200-2200, with a resolution of up to 1.0 mm. The sensor contains an analog output and a digital output. The output is 0-10 V or 4-20 mA and the digital output is NPN or PNP, NA or NC, which generates a window detection. The sensor is the ideal choice for distance measurement, level measurement, diameter measurement or loop control. Thanks to microprocessor control, digital filtering makes the sensor immune to most electromagnetic interference, UA18CAD09PKM1TI, M18 PBT cylindrical box. Detection distance: 50-2,200 mm. Power supply: from 12 (15) to 30 V DC. Outputs: 0-10 V DC or 4-20 mA and an NPN or PNP, NA or NC switching output. Linearity error 1%. Repeatability 0.5%. Beam angle ±7° or ±8°. Protection: Short circuits, polarity reversal and overvoltage. Protection level IP 67. 2 m cable or M12 connector.
