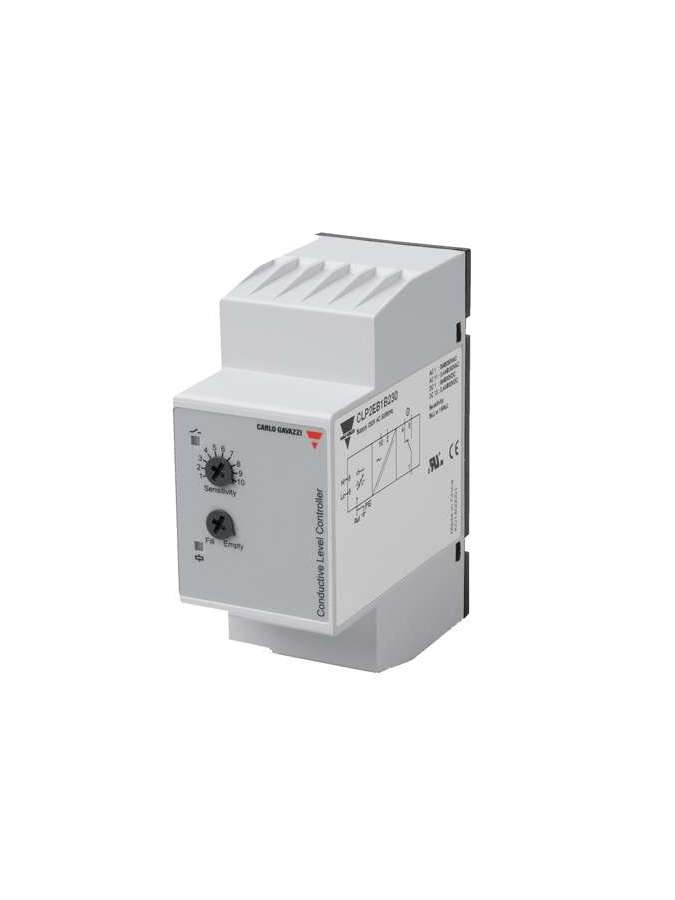

CLP2EB1B024 Carlo Gavazzi

CLP2EB1B024, Conductive Sensors 2-point Level Controller Model CL with Potentiometer, CLP2EB1B024, Microprocessor-based Level Control for liquids with a wide sensitivity range (wastewater, chemicals, salt water, etc.). Max./min. control of loading/unloading. The sensitivity is adjusted by potentiometer. Relay output SPDT 1 x 8A., CLP2EB1B024, Connection cable PVC cable of 2, 3 or 4 conductors, usually shielded. Cable length: max. 100 m. The resistance between the conductive wire and ground must be at least 500K. Normally, it is recommended to use a shielded cable between the probe and the relay, for example, if the cable is placed in parallel with the power (network) cables. Example 1 The diagram shows the connected level control as max. and min control. The relays react to the low alternating current generated when the electrodes are in contact with the liquid. The reference (Ref) must be connected to the tank, or if the tank is made of a non-conductive material, to an additional electrode. (It will connect to pin 7.) (In the diagram, such an electrode is indicated by a dotted line.) NOTE! If only one level needs to be detected, interconnect inputs 5 and 6.
