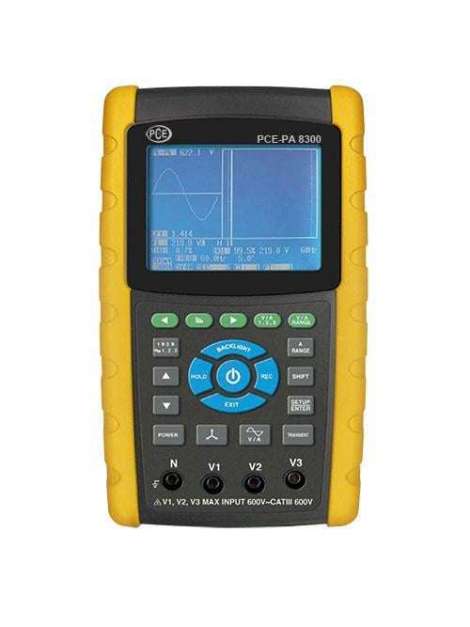

Watmeter PCE-PA 8300-2

The watmeter PCE-PA 8300-2 can make extensive measurements. The watmeter allows to measure and record the power of a monophasic or triphasic circuit. The measurement values are saved on an SD card in xls format. This allows to easily analyze the measurement values on the computer. The measurement fee can be adjusted freely between 2 and 7200 seconds. The tester is also able to make energy measurements and also determine the power factor and the phase angle. The watmeter clamps PCE-PA 8300-2 can be used for cables with a diameter of up to 50 mm. Therefore, this meter is ideal for use in power supply networks.

- Measurement range: 10 V ... 600 V
- 600 V voltage measurement (AC)
- Current measurement up to 1200 A (AC)
- Harmonic Measurement to Harmonic Number 50
- THD measurement
- Game of clamps PCE-PA C2 (3000 A) included
