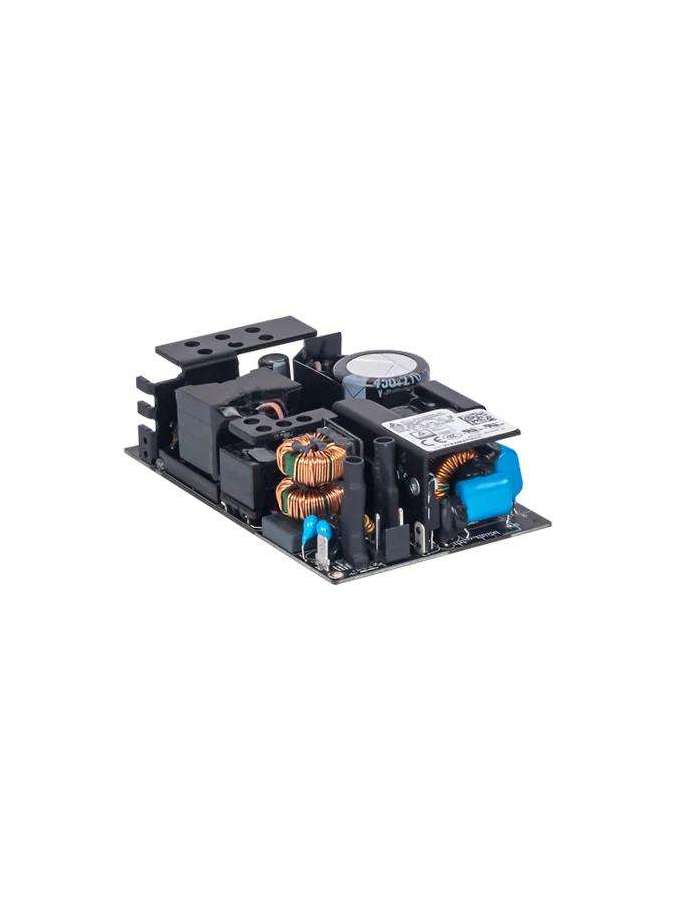

MDS-400APB12 AA DELTA
MDS-400APB12 AA
Sheet
- Output Current
- 33.33A
- Output Voltage
- 12V
- Output Power
- 400W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 5.5A
- Inrush Current
- 40A @ 230Vac, cold start
- Power Factor at 100% load
- 0.95 @ 115V/50Hz, 230V/50Hz, full load
- Case Chassis / Cover
- NA
- Operating Temperature
- -10°C to+70°C
- Storage Temperature
- -40°C to+85°C
- Operating Humidity
- 5-95% RH (Non-Condensing)
- MTBF
- 500 kHrs based on Telecordia SR-332
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)
- Emission
- EN/BS EN 55011 & compliant with EN/BS EN 55032, FCC Title 47:Class B
- Harmonic Current Emissions
- IEC 61000-3-2 Class D limit
- Voltage Fluctuation and Flicker
- IEC 61000-3-3
- Line Regulation
- ±0.5%
- Load Regulation
- ±1%
- Start-up Time
- 2000ms @ 115Vac
- Hold-up Time
- 10ms @ 115Vac, with 400W load
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ±5% @ 50-100% load
- Shock Test (Non-Operating)
- 50G, 11ms, 3 shocks for each direction
- Overvoltage
- 135% of rated voltage, Latch Mode
- Over Temperature
- Latch Mode
- Short Circuit
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Ripple and Noise
- 150mVpk-pk Vrated @ Full load
- Power De-rating
- power linearly de-rate from 50°C to 50% ratedup to 70°C
