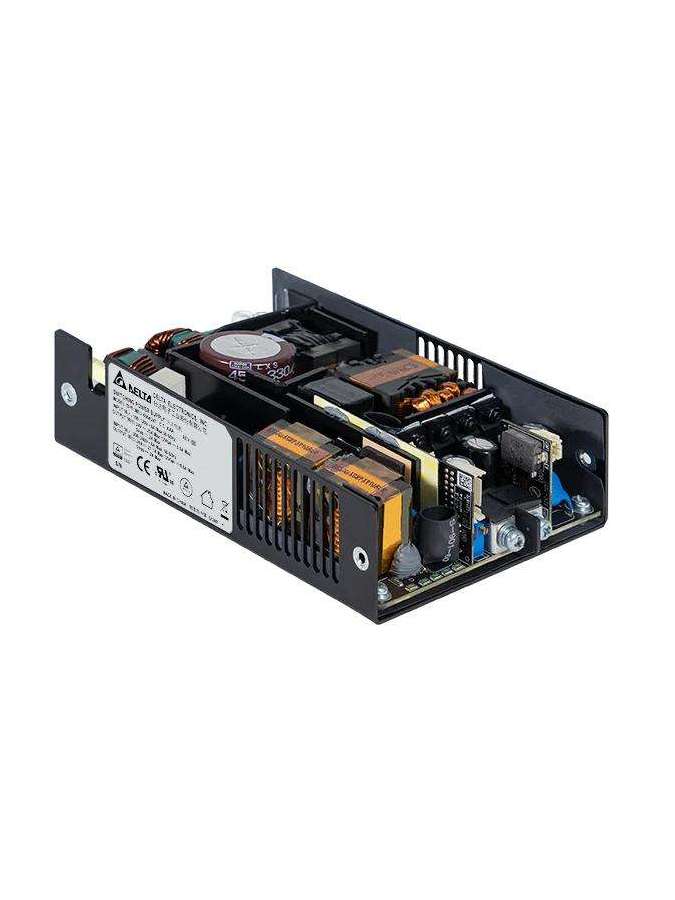

MEU-650A24T DELTA

Sheet

Output Current

0-27.1A

Output Voltage

24V

Output Power

650W

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

8.0 A

Inrush Current

40 A @ 264 Vac, cold start

Power Factor at 100% load

0.95 @ 115 Vac / 50 Hz, 230 Vac / 50 Hz, full load

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

MTBF

500 kHrs based on Telecordia SR-332

Expected Cap Life Time

26,280 hrs

CE

In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014& EN 60601-1-2: 2015

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002Regulations 2016 (UK MDR 2002)

Emission

EN55011 / EN55032,FCC Title 47:Class B

Harmonic Current Emissions

IEC61000-3-2 Meet Class D limit

Line Regulation

1%

Load Regulation

2%

Start-up Time

2000 ms with AC turn on

Hold-up Time

20 ms @ 450 W load, with nominal input range

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ with 0-50% & 50-100% load change

Vibration (Operating)

5-500 Hz, 2 Grms, 15 minute for each three axis

Shock Test (Non-Operating)

50 G, 11 ms, 3 shocks for each direction

Overvoltage

Main output 140% of rated normal voltage, Latch Mode Standby 125% of rated voltage, Latch Mode

Overload / Overcurrent

750 W for over 750 ms max Standby 3.2 A max with Hiccup Mode(Non-Latching, Auto-Recovery)

Over Temperature

Latch Mode for Main output

Short Circuit

Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

Start-up with Capacitive Loads

6000 uF

Leakage Current

0.3 mA @ NC, 1 mA @ SFC

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54 kPa)
