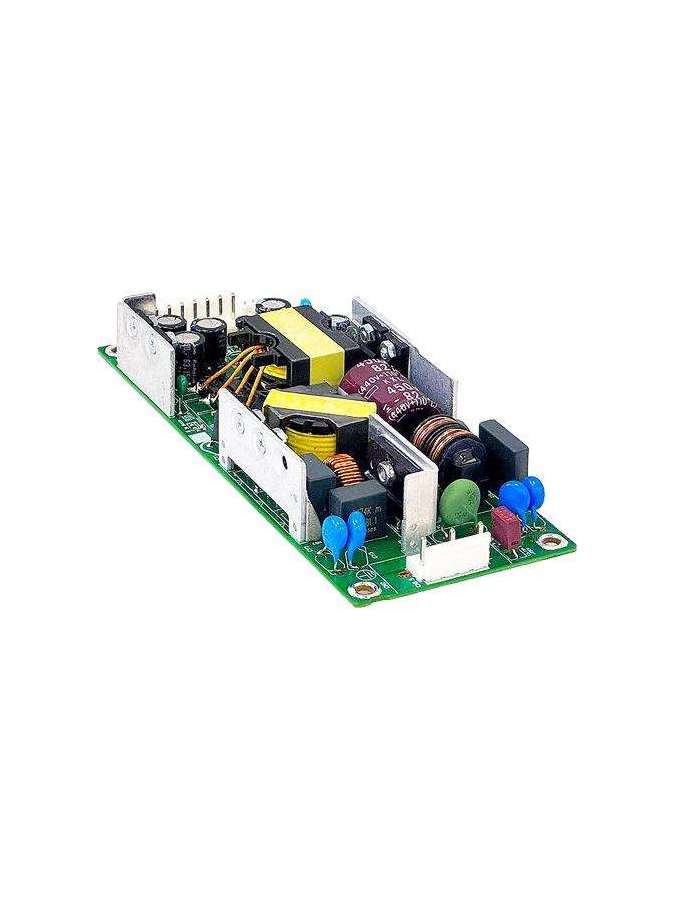

PJ-12V100WDRA DELTA

Sheet

Output Current

8.5A

Output Voltage

12V

Output Power

102W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

SGCC

Cooling System

Convection

Input Terminal

JST B3P5-VH (LF)(SN)

Output Terminal

JST B8P-VH (LF)(SN)

Operating Temperature

-40°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 90% RH (Non-Condensing)

Expected Cap Life Time

10 years (100 Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A & Class D

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Line Regulation

+/- 0.5%

Load Regulation

+/- 0.5%

Start-up Time

500ms typ. @ 100Vac (100% load)

Hold-up Time

30ms typ. @ 100Vac (100% load)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave 50G,11 ms, 3 shocks X, Y, and Z direction

Overvoltage

14.0-18.0 V, Latch Mode

Over Temperature

Latch Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

Output Voltage Adjustment Range

10.8-13.2Vdc

Start-up with Capacitive Loads

8,000µF Max

Wire

AWG 22-18

Power De-rating

Refer to datasheet (Engineering Data Fig.1.1~Fig.1.5 on Page8~10)

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Safety Entry Low Voltage

SELV

Immunity

EN/BS EN 55035

DC Input Voltage Range

120-373 Vdc

Pollution Degree

2

Over Voltage Category

II
