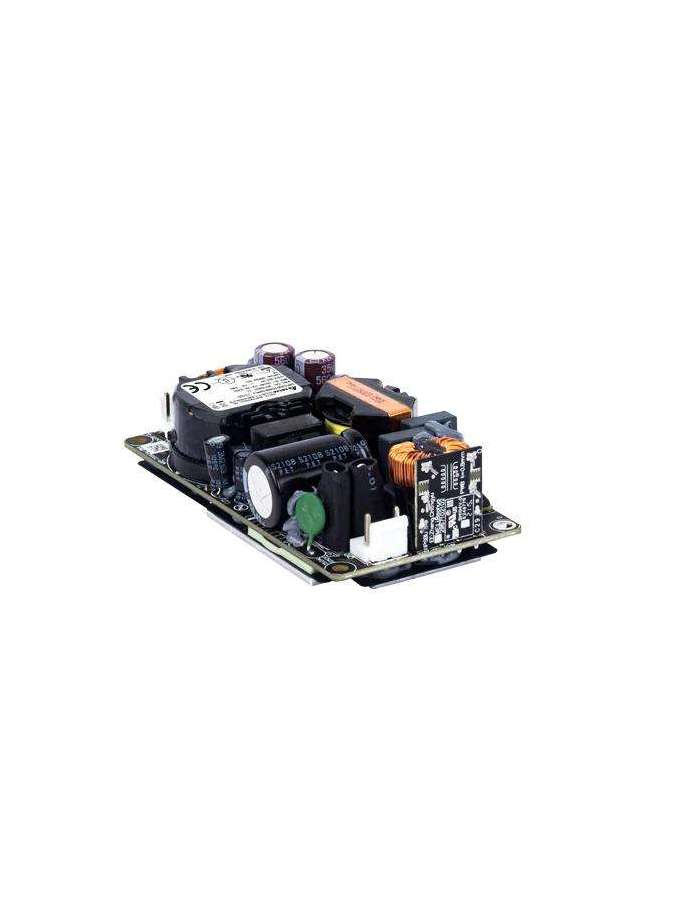

MEP-200A12J DELTA

Sheet

Output Current

0-16.67A

Output Voltage

12V

Output Power

200W

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

2.5 A

Inrush Current

60 A at 264 Vac, cold start

Power Factor at 100% load

0.95 at 115 V & 230 Vac / 50 Hz, full load

Case Chassis / Cover

Open Frame

Cooling System

Convection / Force air

Operating Temperature

-30 °C to +70 °C

Storage Temperature

-40 °C to +85 °C

Operating Humidity

5-95 % RH (Non-Condensing)

Vibration (Non-Operating)

5 – 500 Hz, 2 Grms, 15 minute for each three axis

MTBF

1,000 Khrs based on Telecordia SR-332

Expected Cap Life Time

26,280 hrs

CE

In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014& EN 60601-1-2: 2015

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 (UK MDR 2002)

Emission

EN55011/EN55032,FCC Title 47:Class B for Class I Note: Class B Radiated Emission for Class II connection without earth connection needs to add EMI filter. Please consult with DELTA for detail information.

Harmonic Current Emissions

IEC61000-3-2 Meet Class D limit

Line Regulation

1%

Load Regulation

2%

Start-up Time

1,000 ms with AC turn on

Hold-up Time

12 ms @ 180W load, with nominal input range

Shock Test (Non-Operating)

50 G, 11 ms, 3 shocks for each direction

Overvoltage

Main output 125 % of rated normal voltage, latch mode

Overload / Overcurrent

Main output 140% of rated current, Hiccup Mode

Over Temperature

Latch Mode for Main output

Short Circuit

Hiccup Mode (Non-Latching, Auto-Recovery)

Protection Against Shock

Class I & II (This specification is applicable to Class I or Class II equipment and requires evaluation in the end-product assembly.)

Power De-rating

Linear power derating from 100% load at 40°C to 50% load at 70 °C with 2 %/°C

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

PARD

150 mV
