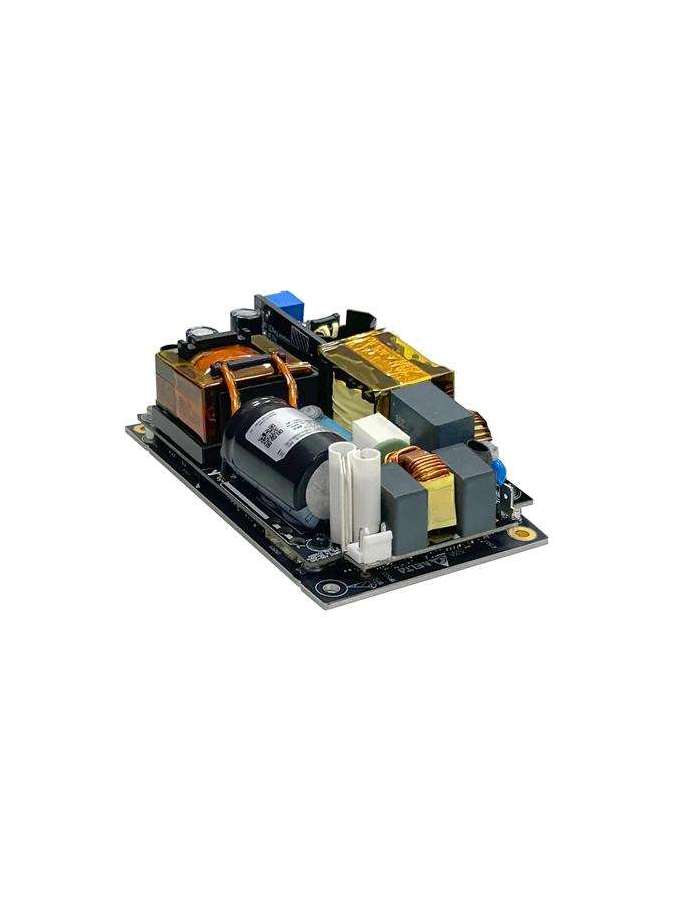

MEP-600A24J BRA DELTA

Sheet

Output Current

0-25A

Output Voltage

24V

Output Power

600W

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

5.8 A typ. @ 115 Vac, 2.9 A typ. @ 230 Vac

Inrush Current

40 A typ. @ 264 Vac (Cold Start)

Case Chassis / Cover

Open Frame

Cooling System

Convection / Force air

Operating Temperature

-20 °C to +80 °C

Storage Temperature

-40 °C to +85 °C

Operating Humidity

5-95 % RH (Non-Condensing)

Vibration (Non-Operating)

5-500 Hz, 2.09 Grms, 20 minutes for each three axis

MTBF

500K hrs based on Telecordia SR-332

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 (UK MDR 2002)

Emission

EN55032 Class B, AS/NZS CISPR32 Class B

Harmonic Current Emissions

IEC 61000-3-2, Meet Class A limit

Voltage Fluctuation and Flicker

IEC 61000-3-3

Line Regulation

0.5%

Load Regulation

2%

Start-up Time

900 ms typ. @ 90 Vac & 264 Vac

Hold-up Time

19 ms typ. @ 115 Vac & 230 Vac (100% load)

Shock Test (Non-Operating)

50 G, 11 ms, 3 shocks for each direction

Overvoltage

Main output 110-150% of rated normal voltage, Latch mode

Overload / Overcurrent

Main output 105-130% of rated current, Hiccup Mode

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode (Non-Latching, Auto-Recovery)

Protection Against Shock

Class I

Output Voltage Adjustment Range

24-28 Vdc

Start-up with Capacitive Loads

6,000 µF Max

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

PARD

240 mVpp typ. (100% load)

Power Dissipation

No load: 1.1 W typ. @ 264 Vac

Pollution Degree

3

Rise Time

11 ms typ. @ 90 Vac & 264Vac

Over Voltage Category

II
