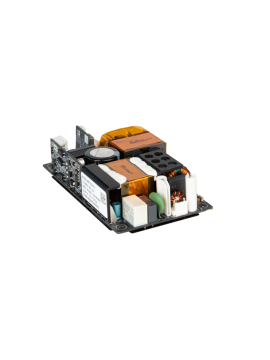

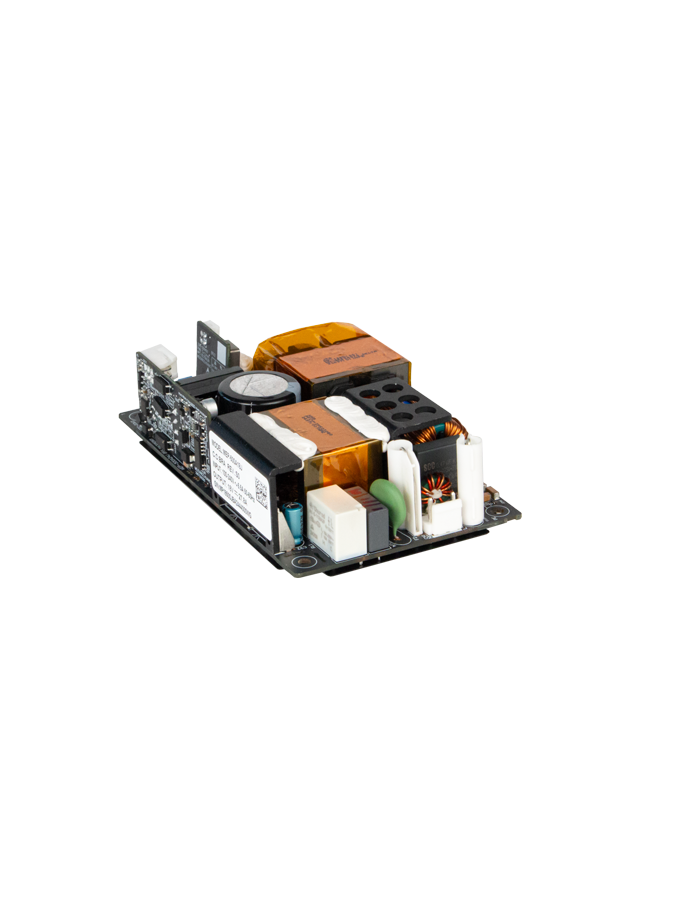

MEP-500A48J BRA DELTA

Sheet

Output Current

0-10.5A

Output Voltage

48V

Output Power

504W

Nominal Input Voltage

100-240 Vac

Input Voltage Range

85-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

6.5 A typ. @ 115 Vac, 4.0 A typ. @ 230 Vac

Inrush Current

60 A typ. @ 230 Vac (Cold Start)

Case Chassis / Cover

Open Frame

Cooling System

Convection / Force air

Operating Temperature

-30 °C to +85 °C (-40 °C Cold Start)

Storage Temperature

-40 °C to +85 °C

Operating Humidity

10-95 % RH (Non-Condensing)

Vibration (Non-Operating)

5-500 Hz, 2.09 Grms, 20 minutes for each three axis

MTBF

1000K hrs based on Telecordia SR-332

Harmonic Current Emissions

IEC 61000-3-2, Meet Class D limit

Voltage Fluctuation and Flicker

IEC 61000-3-3

Line Regulation

0.5%

Load Regulation

1%

Start-up Time

1000 ms @ 115 Vac & 230 Vac

Hold-up Time

13 ms typ. @ 115 Vac & 230 Vac (100% load)

Shock Test (Non-Operating)

50 G, 11 ms, 3 shocks for each direction

Overvoltage

Main output 105-150% of rated normal voltage, Latch mode

Overload / Overcurrent

Main output 105-185% of rated current, Hiccup Mode

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode (Non-Latching, Auto-Recovery)

Protection Against Shock

Class I / II

Output Voltage Adjustment Range

48.0-55.0 Vdc

Start-up with Capacitive Loads

5,000 µF Max

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

PARD

240 mV

Pollution Degree

3

Rise Time

100 ms typ. @ 115 Vac & 230 Vac

Over Voltage Category

II
