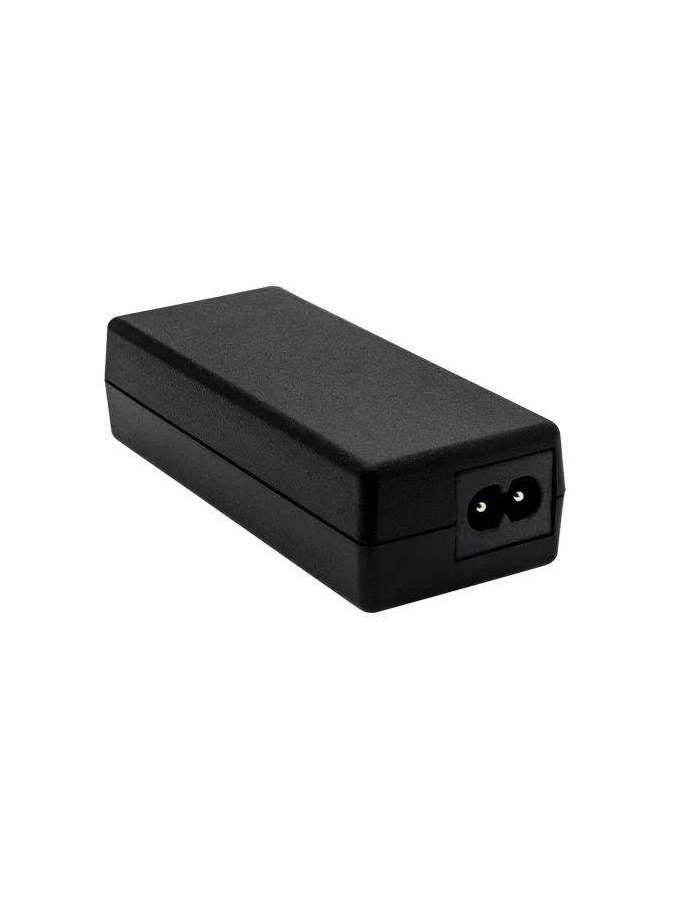

ADT-060A15AB DELTA

Sheet

Output Current

4A

Output Voltage

15V

Output Power

60W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.4A max. at 115Vac, 1.0A max. at 230Vac

Efficiency at 100% load

87.9% typ. at 115Vac, 90.0% typ. at 230Vac

Case Chassis / Cover

PC

Cooling System

Convection

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20 minute for X,Y,Z axis

Storage Humidity

5 to 95% RH (Non-Condensing)

Expected Cap Life Time

5 years (50% load @ 25°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC 61000-3-2: Class D; GB17625.1-2003

Voltage Fluctuation and Flicker

IEC 61000-3-3

Voltage Dips

IEC 61000-4-11

Line Regulation

± 1%

Load Regulation

± 4.0%

Start-up Time

1000ms (typ.) at 115Vac, 500ms (typ.) at 230Vac

Hold-up Time

12ms (typ.) at 115Vac, 60ms (typ.) at 230Vac

Shock Test (Non-Operating)

Half sine wave, 50G, 11ms, 1 shocks for each direction, 6 direction

Overvoltage

16.5-22.5V, Latch Mode

Overload / Overcurrent

4.20-8.00A Auto-Recovery when the fault is removed

Over Temperature

Latch Mode

Short Circuit

Auto-Recovery when the fault is removed

Protection Against Shock

Class II

Galvanic Isolation

Input to Output: 3000Vac

Leakage Current

0.1mA @ 240Vac/50Hz (max.)

Operating Altitude

Up to 5,000 meters (up to 16,400 feet)

Immunity

EN/BS EN 55024; KN35

Rise Time

30mS (typ.) at 115Vac & 230Vac
