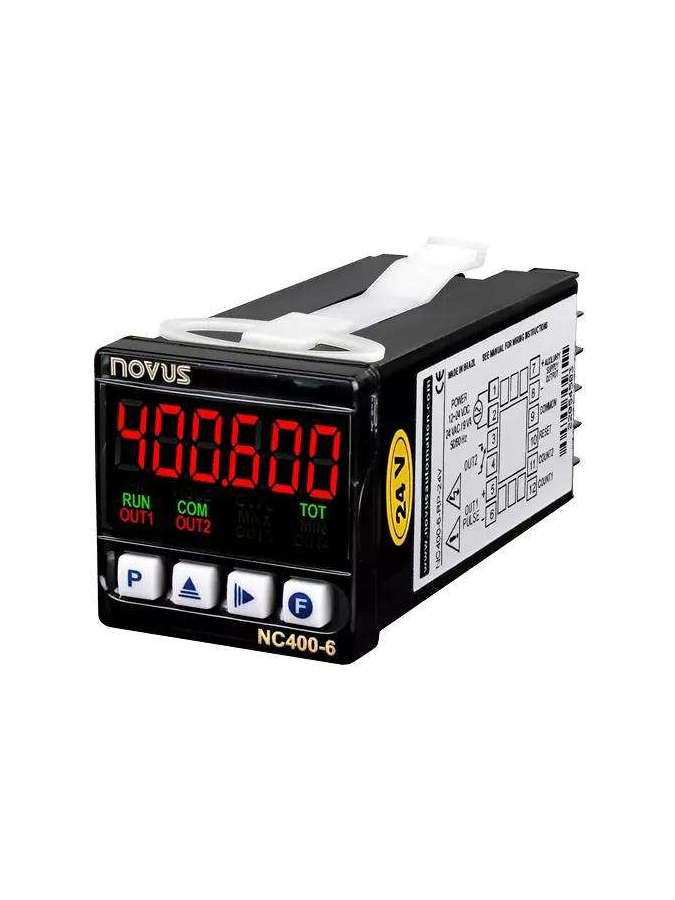

NC400-6-RP 24V RS485 6-Dig Counter 1 relay, pulse 48x48mm (1/16 DIN)
The NC400-6 6-Digit Electronic Counter is a versatile and advanced device designed for counting, batch, and totalizer operations. It features two configurable outputs with independent presets that can be triggered based on counting, batch, or totalization values. The counter supports multiple input types, including dry-contact, voltage pulse, NPN, and PNP sensors, which can be powered by an internal power supply. With configurable counting modes (progressive, regressive, quadrature, sum, or subtraction) and reset options (automatic or manual), the NC400-6 offers flexibility for a wide range of applications. Manual reset can be initiated via a digital input or the front panel key.High-Resolution Display: 6-digit red LED display with 12 mm height for clear visibility.
Versatile Inputs: Supports dry-contact, voltage pulse, NPN, and PNP sensors, with optional internal power supply for sensors.
Flexible Counting Modes: Configurable as progressive, regressive, quadrature, sum, or subtraction for diverse applications.
Configurable Outputs: Two independent relay outputs with presets for counting, batch, or totalization values.
Wide Power Range: Operates on 100-240 Vac/dc or 12~24 Vdc, ensuring compatibility with various power sources.
Compact Design: Dimensions of 48 x 48 x 110 mm with a panel cutout of 45.5 x 45.5 mm, ideal for space-saving installations.
Robust Protection: IP65 front panel ensures durability in harsh environments.
Easy Reset Options: Automatic or manual reset via digital input or front panel key.
Downloads
electroniccounter-nc4006-fly.pdfNo customer reviews for the moment.
